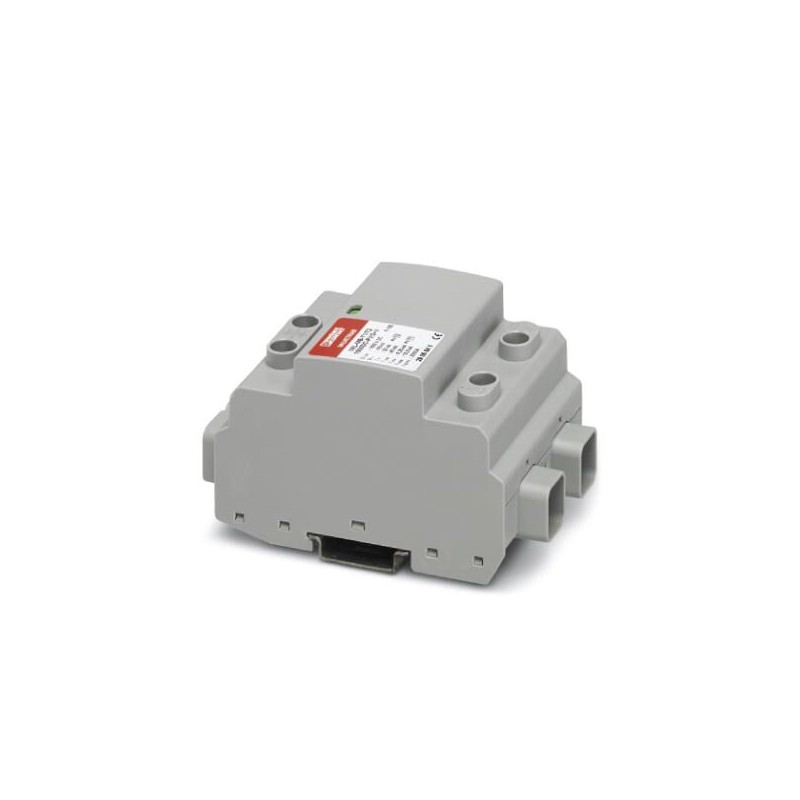

VAL-MB-T1/T2 1500DC-PV/2+V/20 1099553 PHOENIX CONTACT Surge protection
VAL-MB-T1/T2 1500DC-PV/2+V/20
1099553
PHOENIX_CONTACT
20
Surge protection
Lightning/surge current charger for 2-pole insulated 1500 V DC dc dc voltage systems, for rail mounting, protection elements with temperature control, status message on the module.
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Lightning impulse current (10/350 µs) (EF000421) | 6.25 kA |
| Nominal discharge surge current (8/20) (EF004214) | 40 kA |
| Max. continuous voltage DC (EF004777) | 1500 V |
| Voltage protection level (DC+ - DC-) (EF009643) | 4.5 kV |
| Voltage protection level (DC+/DC- - PE) (EF009644) | 4.5 kV |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | Other |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 35 mm² |
| Signalling at the device (EF004241) | Optic |
| Category type 1 (EF004229) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
