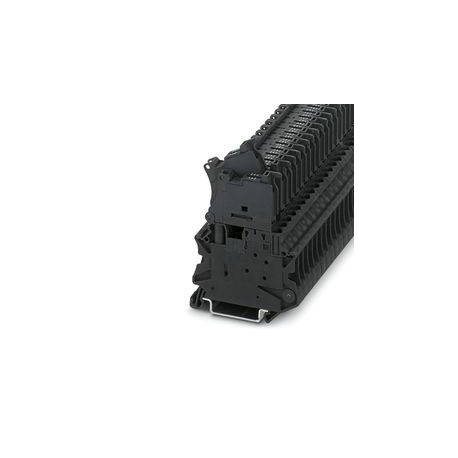

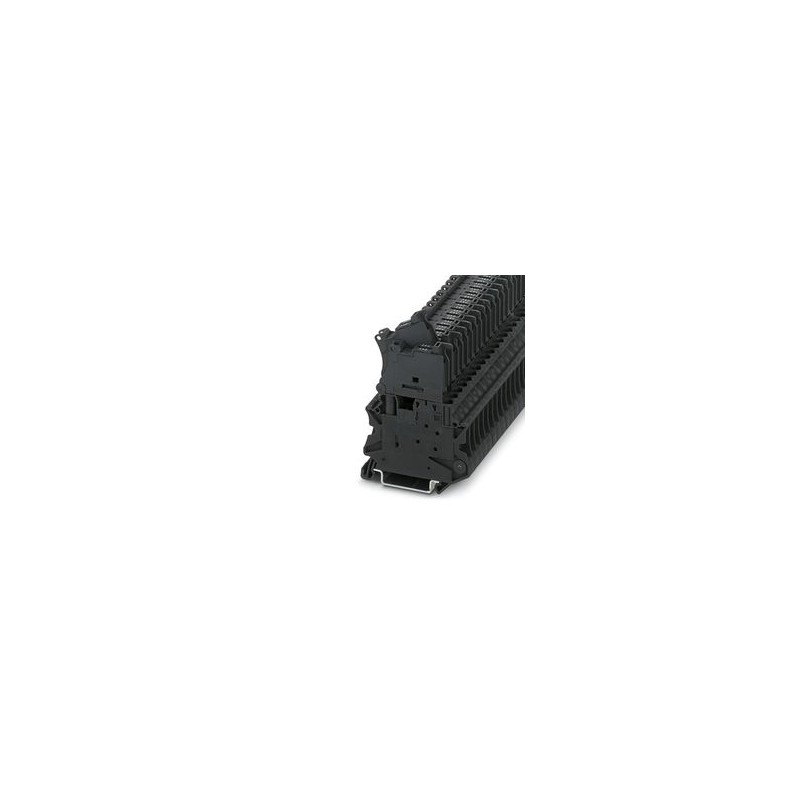

UT 4-HESILED 24-P/P-EX 1021489 PHOENIX CONTACT Rail terminal for fuse, with threaded females for test socket..
UT 4-HESILED 24-P/P-EX
1021489
PHOENIX_CONTACT
50
Rail terminal for fuse, with threaded females for test sockets to accommodate test pins, type of fuse: Glass/ceramic/..., type of fuse: G/5 x 20, number of poles: 1, type of connection: Screw connection, Sizing section: 4 mm², section: 0.14 mm²- 6 mm², mounting class: NS 35/7.5, NS 35/15, Color: Black
Fuse rail terminal, with threaded sockets for test sockets to accommodate test pins, fuse type: Glass/ceramic/..., fuse type: G/5 x 20, number of poles: 1, connection type: Screw connection, Dimensioning section: 4 mm², cross-section: 0.14 mm²- 6 mm², mounting type: NS 35/7.5, NS 35/15, Color: Black
Terminal blocks > Fuse terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Fuse terminal block |
| Number of poles | 1 |
| Number of connections | 2 |
| Number of rows | 1 |
| Potential | 1 |
| Insulation Properties | |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Fuse Type | Glass/ceramics/... |
| Dimensioning Transient Voltage | 4 kV |
| Maximum Dissipated Power with Nominal Condition | 1.02 W |
| Fuse | G/5 x 20 |
| Voltage Range Light Indication | 12 V AC/DC ... 30 V AC/DC |
| Current Light Indication | 6.3 A |
| Maximum current in case of individual arrangement | 6.3 A |
| Current Range Light Indication | 0.31 mA ... 0.95 mA |
| Maximum dissipation | max. 1.6 W (for individual arrangement of the fuse terminal block in case of overload) |
| max. 1.6 W (for combined arrangement with several fuse terminals in case of overload) | |
| max. 4 W (for individual arrangement of the fuse terminal block in case of short circuit) | |
| max. 2.5 W (for combined arrangement with several fuse terminals in case of short circuit) |
| Voltage Range Light Indication | 12 V AC/DC ... 30 V AC/DC |
| Number of connections per floor | 2 |
| Nominal Section | 4 mm² |
| AWG Conductor Section | (Converted according to IEC) |
| Screw thread | M3 |
| Tightening torque | 0,6 ... 0.8 Nm |
| Length to be de-insulated | 9 mm |
| Male Gauge | A4 |
| Rigid conductor section | 0.14 mm² ... 6 mm² |
| AWG Conductor Section | 26 ... 10 (Converted according to IEC) |
| Flexible conductor section | 0.14 mm² ... 6 mm² |
| Flexible Wire Section [AWG] | 26 ... 10 (Converted according to IEC) |
| Flexible cable section (toe cap without plastic sleeve) | 0.14 mm² ... 4 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 0.14 mm² ... 4 mm² |
| 2 conductors with the same cross-section, rigid | 0.14 mm² ... 1.5 mm² |
| 2 conductors with the same cross-section, flexible | 0.14 mm² ... 1.5 mm² |
| Nominal Section | 4 mm² |
| Dimensioning data (ATEX/IECEx) | |
| Marked | II 3 G Ex ec llC Gc |
| Operating temperature range | -60 °C ... 130 °C |
| Ex-certified accessories | 1205053 SZS 0.6X3.5 |
| 3022276 CLIPFIX 35-5 | |
| 3022218 CLIPFIX 35 | |
| Nominal voltage | 275 V |
| Sizing Insulation Voltage | 250 V |
| analogical | (permanent) |
| Ex Floor Overview | |
| Rated Current | 6.3 A (4 mm²) |
| Maximum Charging Current | 6.3 A (6 mm²) |
| Contact resistance | 5 mΩ |
| Connection Data Ex Overview | |
| Torque range | 0.6 Nm ... 0.8 Nm |
| Nominal Section | 4 mm² |
| AWG Sizing Section | 12 |
| Connectability, Rigid Cable | 0.14 mm² ... 6 mm² |
| AWG Connection Capability | 26 ... 10 |
| Connectability, flexible cable | 0.14 mm² ... 6 mm² |
| AWG Connection Capability | 26 ... 10 |
| 2 conductors with the same cross-section, rigid | 0.14 mm² ... 1.5 mm² |
| 2 conductors with the same rigid AWG cross-section | 26 ... 16 |
| 2 conductors with the same cross-section, flexible | 0.14 mm² ... 1.5 mm² |
| 2 conductors with the same flexible AWG cross-section | 26 ... 16 |
| Flexible conductor section with toe cap, without min plastic sleeve. | 0.14 mm² |
| Flexible conductor section with toe cap, without plastic sleeve max. | 4 mm² |
| Flexible driver/terminal point with AWG plastic sleeveless ferrule | 26 ... 12 |
| Colour | black |
| Flammability class according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Mechanical data | |
| Open sidewall | No |
| Type of mounting | NS 35/7.5 |
| NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Type of fuse insert (EF002530) | Other |
| Type of fuse holder (EF002531) | Other |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.14 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of levels (EF002659) | 1 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 6.15 mm |
| Height (EF000040) | 57.8 mm |
| Depth (EF000049) | 74.98 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Black |
