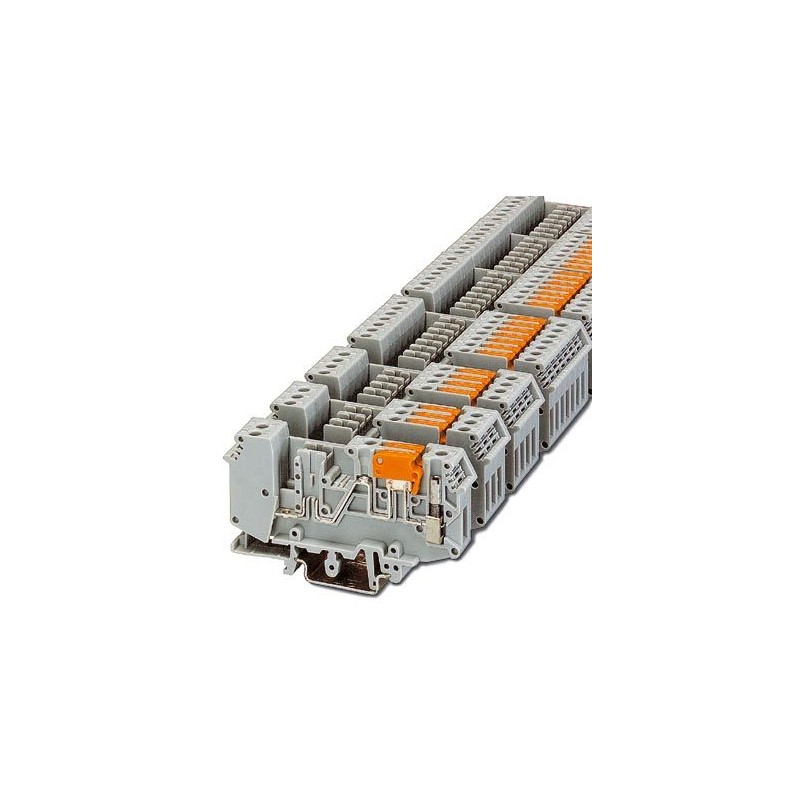

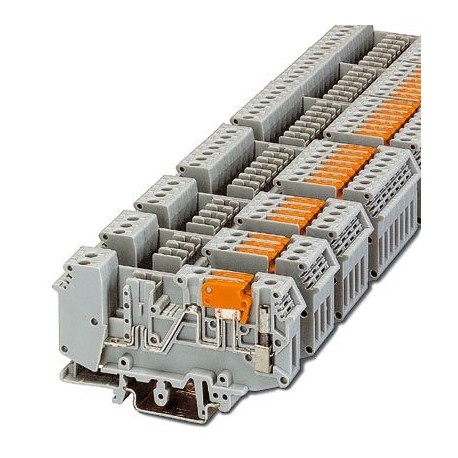

URELG 4-PMTK 2820712 PHOENIX CONTACT Basic terminal block
URELG 4-PMTK
2820712
PHOENIX_CONTACT
10
Basic terminal block
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2820712 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 95 (IF-2005) |
| GTIN | 4017918076849 |
| Weight per Piece (excluding packing) | 81.510 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Number of positions | 4 |
|---|---|
| Nominal voltage UN | 400 V (voltage is determined by the coupling connector.) |
| Nominal current IN | 16 A (current is determined by the coupling connector.) |
| Color | gray |
| Insulating material | PA |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371603eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
