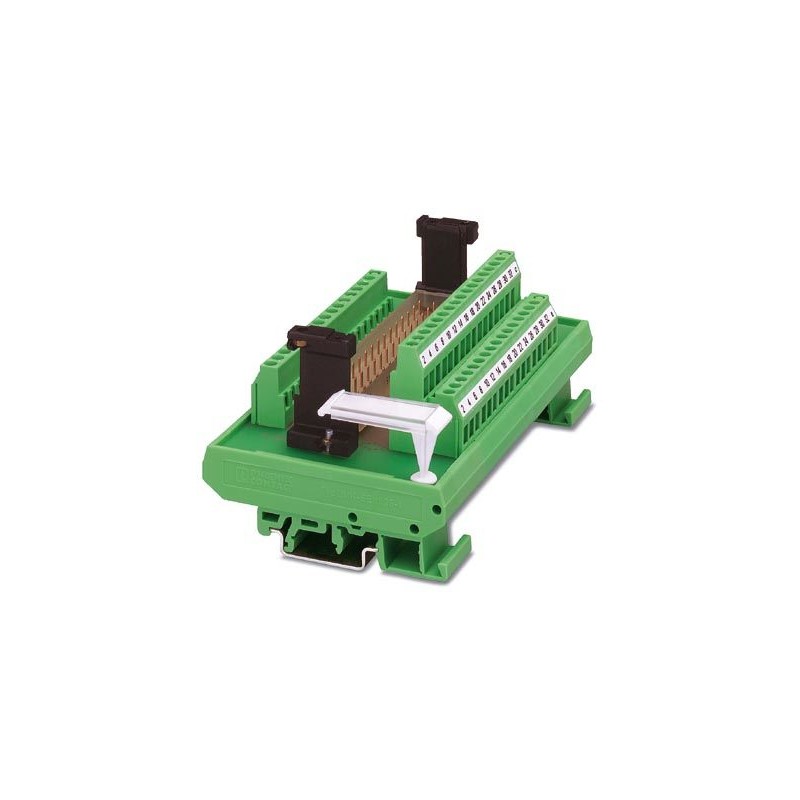

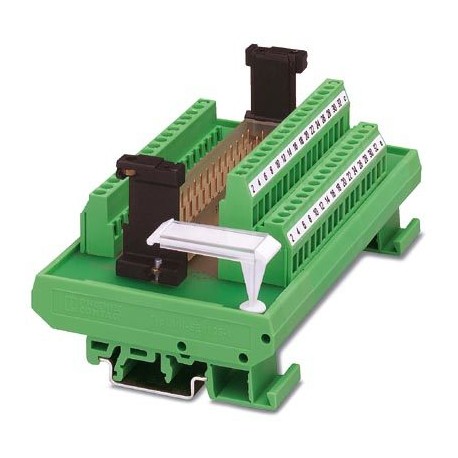

UMK- E48M-VS 2970086 PHOENIX CONTACT Module VARIOFACE, for conectoresIEC 603/DIN 41612, construction E, 48 p..
UMK- E48M-VS
2970086
PHOENIX_CONTACT
Module VARIOFACE, for conectoresIEC 603/DIN 41612, construction E, 48 poles, equipped in rows a, c, e, with male connector, casing of cable screw
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million nine hundred seventy thousand eighty six |
|---|---|
| Packing unit | 1 pcs |
| Key selling | CK2241 - |
| Catalog page | Page 231 (IF_2002) |
| EAN | Four trillion seventeen billion nine hundred eighteen million eighty seven thousand five hundred ninety three |
| Unit weight (excluding packaging) | 221,440 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | (Germany) |
Environmental conditions
| Room temperature (service) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -20 °C ... 70 °C |
Overview
| Operating voltage max. admissible | 250 V |
|---|---|
| Current max. admissible (by referral) | 4 To |
| Number of poles | Forty eight |
| Position to the mounting | discretionary |
Data connection, conex. 1
| Name Connection | Field level |
|---|---|
| Connection according to standard | IEC / EN |
| Type of connection | Connection by screw |
| Length desaislar | 8 mm |
| Screw thread | M3 |
| Section of conductor rigid | 0,2 mm2 ... 4 mm2 |
| Section of flexible conductor | 0,2 mm2 ... 2.5 mm2 |
| Section of conductor AWG | 24 ... 12 |
Data connection, conex. 2
| Name Connection | Level of control |
|---|---|
| Type of connection | IEC 603/DIN connection 41612 |
| Number of connections | One |
| Number of poles | Forty eight |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0Twenty seven million two hundred fifty thousand three hundred thirteeneCl@ss 4.1Twenty seven million two hundred fifty thousand three hundred thirteeneCl@ss 5.0Twenty seven million two hundred fifty thousand three hundred thirteeneCl@ss 5.1Twenty seven million two hundred fifty thousand three hundredeCl@ss 6.0Twenty seven million two hundred forty two thousand six hundredeCl@ss 7.0Twenty seven million one hundred forty one thousand one hundred fifty twoeCl@ss 8.0Twenty seven million one hundred forty one thousand one hundred fifty twoeCl@ss 9.0Twenty seven million one hundred forty one thousand one hundred fifty two
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred twenty fourUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred twenty oneUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred twenty oneUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred twenty oneUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirty two
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
