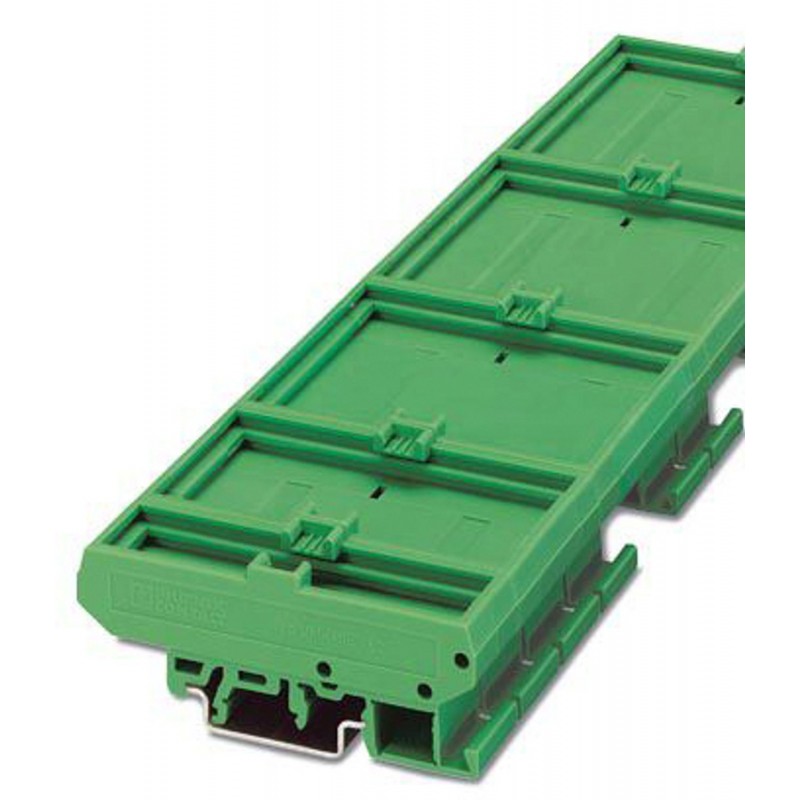

UMK-BE 45 GY 2971771 PHOENIX CONTACT Electronic housing
UMK-BE 45 GY
2971771
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.
Electronic housing
Electronic mounting bracket, plug-in module base element
Electronic board base, plug-in module base element
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Component housing lower part |
| Housing type | Press-drawn section housings |
| Housing series | UMK |
| Product family | UMK BE |
| Type | Module width 45 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height |
| Type | Plug-in module base element |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 01 |
| Dimensional drawing |  |
| Depth | 15.5 mm |
| Length | 45 mm |
| External dimensions | |
| Profile width (external) | 77 mm |
| Internal dimensions | |
| Profile width (internal) | 72.2 mm |
| Color (Housing) | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7042 |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 72.2 mm |
| Depth (EF000049) | 15.5 mm |
