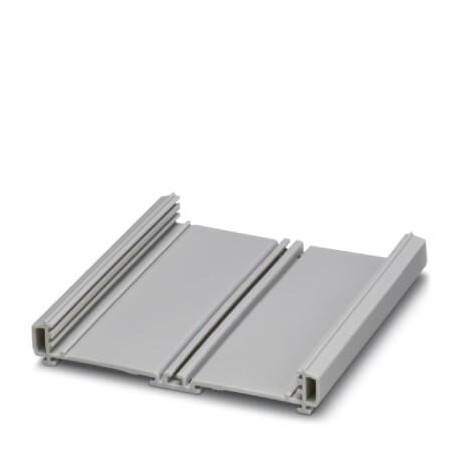

UM-PRO 108 L 7,40CM GY7035 BO 2203778 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile w..
UM-PRO 108 L 7,40CM GY7035 BO
2203778
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.

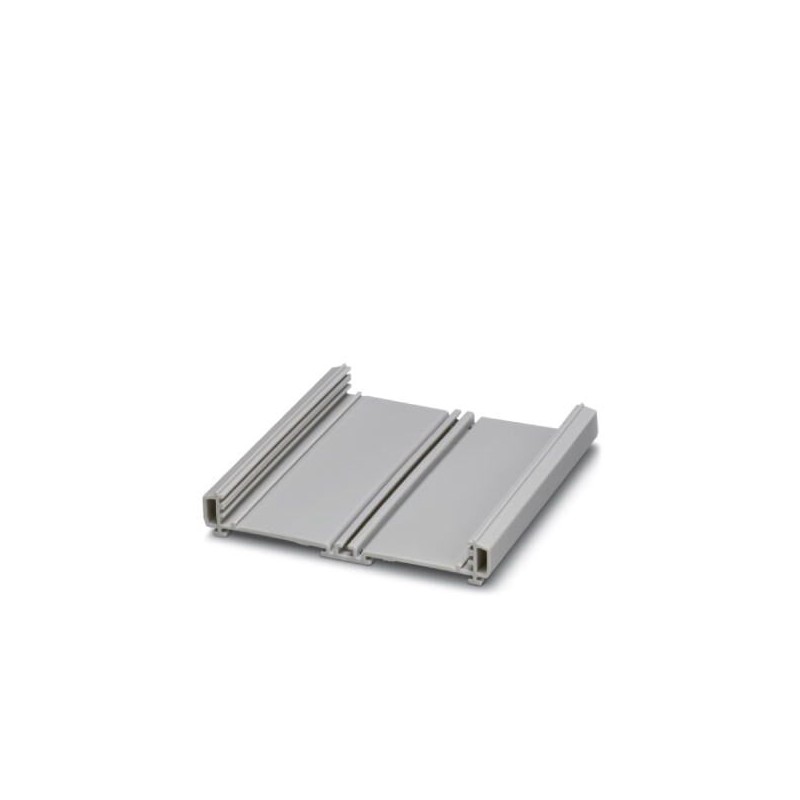

Press-drawn section housings, Basic profile, profile width (internal): 108 mm, length: 74 mm, color: light gray (7035)
Extruded profile boxes, Locking with side elements, locking with floor element, Basic profile, colour: light grey (7035), profile width (inside): 108 mm, length: 74 mm, depth: 19.8 mm
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Product properties
| Brief article description | Profile |
|---|---|
| Type | UM-PRO 108 L 7,40CM GY7035 BO |
| Order No. | 2203778 |
| Housing type | Press-drawn section housings |
| Type | Basic profile |
| Mounting type | Latching with side elements, latching with foot element |
Dimensions
| Length | 74 mm |
|---|---|
| Profile PCB width (selectable): | 108 mm [UM108] |
| Profile width (internal) | 108 mm |
| Depth | 19.8 mm |
Material specifications
| Housing material | Polyamide |
|---|---|
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
PCB specifications
| PCB holders | 3 |
|---|---|
| PCB thickness | 1.4 mm ... 1.8 mm |
| Mounting position | parallel to the DIN rail |
| Type of PCB mount | Insertion/securing with additional elements |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 74 mm |
| Height (EF000040) | 108 mm |
| Depth (EF000049) | 19.8 mm |
