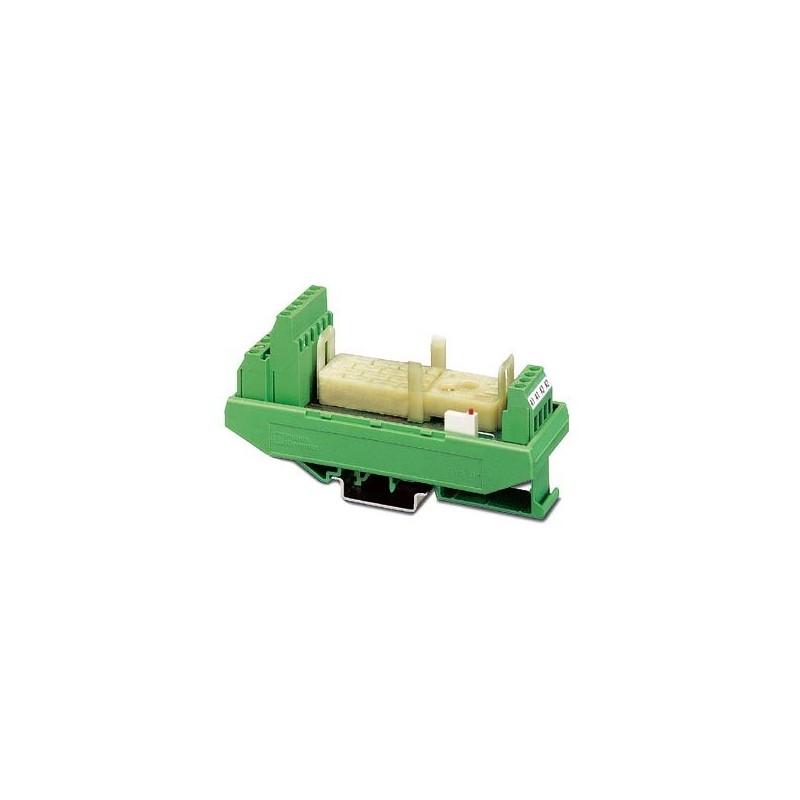

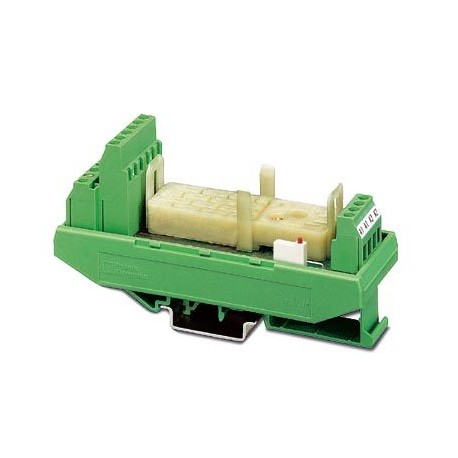

UM-HOZ 462/1-1-1-1-2-2/G 24 2955331 PHOENIX CONTACT Relay base
UM-HOZ 462/1-1-1-1-2-2/G 24
2955331
PHOENIX_CONTACT
5
Relay base
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2955331 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918085421 |
| Weight per Piece (excluding packing) | 92.920 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
General
| Protective circuit | Damping diode, polarity protection diode |
|---|---|
| Color | green |
| Insulating material | PA |
| Operating mode | 100% operating factor |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data, output side
| Connection name | Output side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027371102eCl@ss 4.127371102eCl@ss 5.027371603eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
