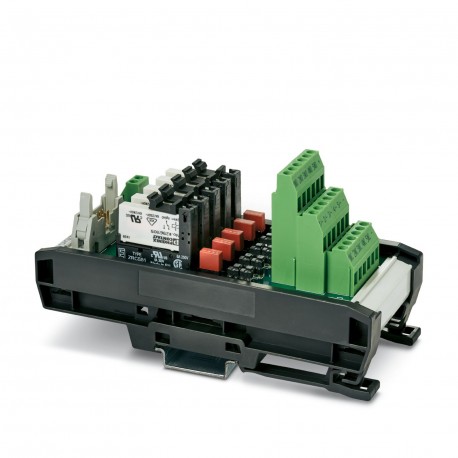

UM-FLK10-5RSC-24DC/DO/ROC800 2905960 PHOENIX CONTACT Active module
UM-FLK10-5RSC-24DC/DO/ROC800
2905960
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Active module
VARIOFACE module for use with Emerson ROC800 series digital output modules. UL Recognized, Class I, Div. 2.
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2905960 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626047478 |
| Weight per Piece (excluding packing) | 268.500 g |
| Custom tariff number | 85369010 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Connection data for connection 1
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 10 |
| Pitch | 2.54 mm |
Connection data for connection 2
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 18 |
Connection data for connection 3
| Connection name | Supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 10 |
| Depth (EF000049) | 78.9 mm |
| Width (EF000008) | 64 mm |
| Height (EF000040) | 142.3 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
