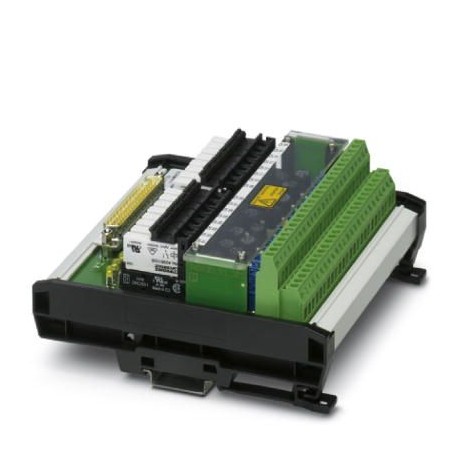

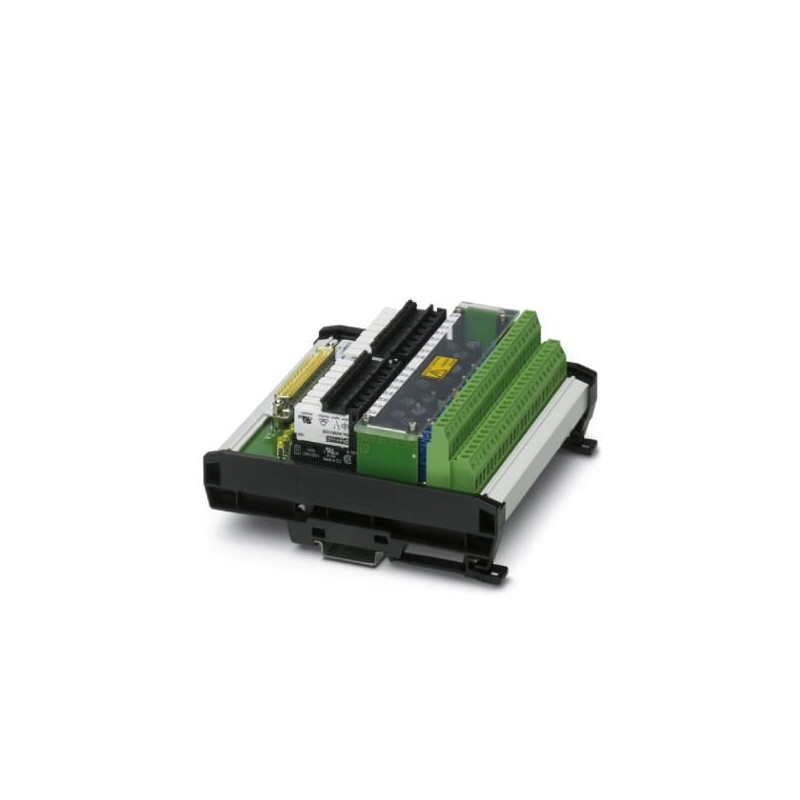

UM-D37SUB/M/HC3/16DO/MR/1/SI 2903733 PHOENIX CONTACT Active module
UM-D37SUB/M/HC3/16DO/MR/1/SI
2903733
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Active module
16-channel relay module for Honeywell C300 TDOB01 and TDOB11 card output. The module is controlled on the control side by D-SUB 37 poles. On the field side, a screw connection is available (inscription: 1...48). Module width: 142 mm
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2903733 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356760775 |
| Weight per Piece (excluding packing) | 628.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 9 mA |
| Typical response time | 5 ms |
| Typical release time | 7 ms |
| Status display/channel | Yellow LED |
Output data
| Contact type | 1 PDT |
|---|---|
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V AC/DC |
| Limiting continuous current | 2 A (Ambient temperature of up to 30°C per path) |
| Min. switching current | 10 mA |
| Interrupting rating (ohmic load) max. | 48 W (24 V DC) |
| 20 W (48 V DC) | |
| 18 W (60 V DC) | |
| 23 W (110 V DC) | |
| 40 W (220 V DC) | |
| 500 VA (250 V AC) |
General
| No. of channels | 16 |
|---|---|
| Mechanical service life | approx. 2x 107cycles |
| Operating mode | 100% operating factor |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data for connection 1
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Connection data for connection 2
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 1 |
| Number of positions | 50 |
Supported controller
| Corresponding control | HONEYWELL Experion PKS C300/C-Series |
|---|---|
| Corresponding I/O card | TDOB01 (non-redundant) |
| TDOB11 (redundant) |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Rated insulation voltage | 260 V AC |
| Rated surge voltage | 4 kV (basic insulation) |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 50 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.009 A |
| Depth (EF000049) | 66 mm |
| Width (EF000008) | 142 mm |
| Height (EF000040) | 142.5 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
