UM-D25SUB/F/16DI-RELS/SC049
2905751
PHOENIX_CONTACT
50

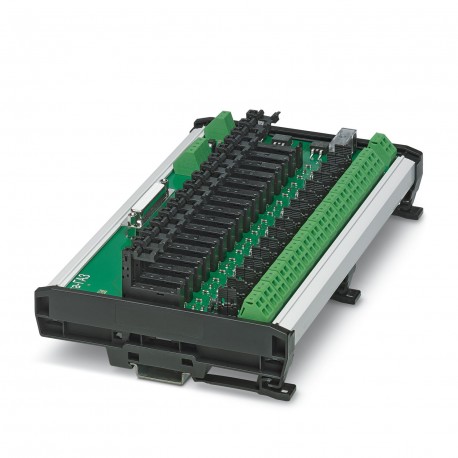

16-channel digital input module with spring connection and 25-pos. D-SUB miniature socket strip, plug-in relay base for mounting 5 V DC or 24 V DC optocouplers, module width: 240 mm
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Utilization restriction | |
EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Relay Module |
Insulation characteristics | |
Insulation | Basic insulation |
Insulation characteristics: Air clearances and creepage distances, input/output | |
Insulation | Basic insulation |
Overvoltage category | III |
Pollution degree | 2 |
Air clearances and creepage distances, input/output | |
Rated surge voltage | 2.5 kV (50 Hz, 1 min.) (The specified data only applies in connection with the optocouplers listed under “required accessories”) |
Nominal input voltage UN | 24 V DC |
Input voltage range in reference to UN | 0.9 ... 1.1 |
Typical input current at UN | 1 A (per channel) |
Switching | |
Maximum switching voltage | 24 V DC |
Limiting continuous current | 1 A (per channel (2-conductor, floating)) |
Controller level | |
Connection in acc. with standard | DIN 41652/IEC 60807-2 |
Connection method | D-SUB socket strip |
Screw thread | UNC 4-40 |
Number of positions | 25 |
Field level | |
Connection method | Spring-cage connection |
Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 |
Status display present | No |
Width | 240 mm |
Height | 143 mm |
Depth | 65 mm |
Ambient conditions | |
Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -20 °C ... 50 °C |
Altitude | ≤ 2000 m |
Air clearances and creepage distances, input/output | |
Standards/regulations | DIN EN 50178: 1998-04 |
Mounting type | DIN rail mounting |
Assembly instructions | in rows with zero spacing |
Mounting position | any |
