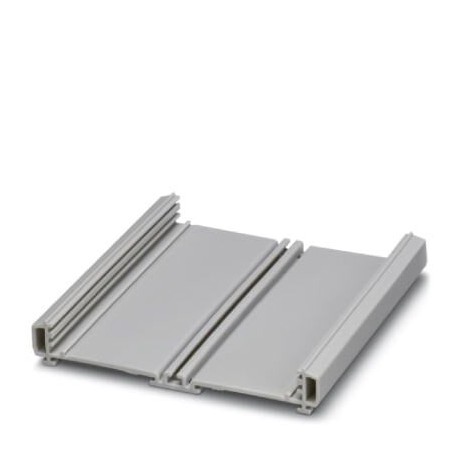

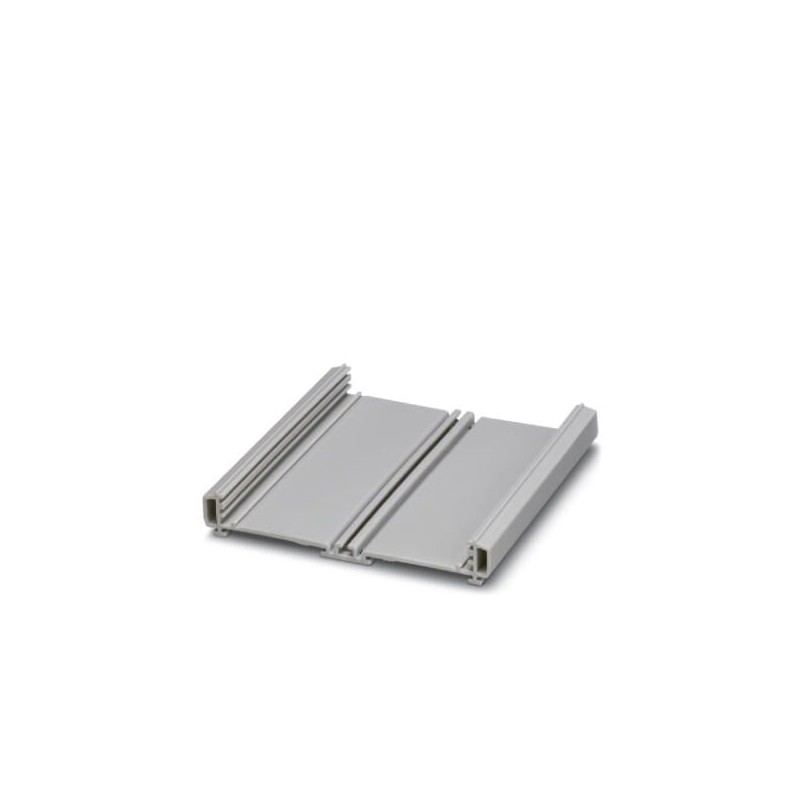

UM-BASIC 108-PROFIL L 90,5 KMGY 1091492 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile..
UM-BASIC 108-PROFIL L 90,5 KMGY
1091492
PHOENIX_CONTACT
50
Press-drawn section housings, Basic profile, profile width (internal): 108 mm, length: 905 mm, color: light gray (7035)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Product properties
| Brief article description | Profile |
|---|---|
| Type | UM-BASIC 108-PROFIL L 90,5 KMGY |
| Order No. | 1091492 |
| Housing type | Press-drawn section housings |
| Type | Basic profile |
| Mounting type | Latching with side elements, latching with foot element |
Material specifications
| Housing material | PVC |
|---|---|
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Ambient temperature (operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 95 % |
PCB specifications
| Mounting position | parallel to the DIN rail |
|---|---|
| Type of PCB mount | Insertion/securing with additional elements |
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | Refer to the data sheet for the range in the download area. |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27182701 |
|---|---|
| eCl@ss 4.0 | 27180401 |
| eCl@ss 4.1 | 27180401 |
| eCl@ss 5.0 | 27180506 |
| eCl@ss 5.1 | 27180500 |
| eCl@ss 6.0 | 27400500 |
| eCl@ss 7.0 | 27182701 |
| eCl@ss 8.0 | 27182701 |
| eCl@ss 9.0 | 27182701 |
ETIM
| ETIM 2.0 | EC001031 |
|---|---|
| ETIM 3.0 | EC001031 |
| ETIM 4.0 | EC000386 |
| ETIM 5.0 | EC002779 |
| ETIM 6.0 | EC002779 |
| ETIM 7.0 | EC002779 |
UNSPSC
| UNSPSC 6.01 | 31261501 |
|---|---|
| UNSPSC 7.0901 | 31261501 |
| UNSPSC 11 | 31261501 |
| UNSPSC 12.01 | 31261501 |
| UNSPSC 13.2 | 31261501 |
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
