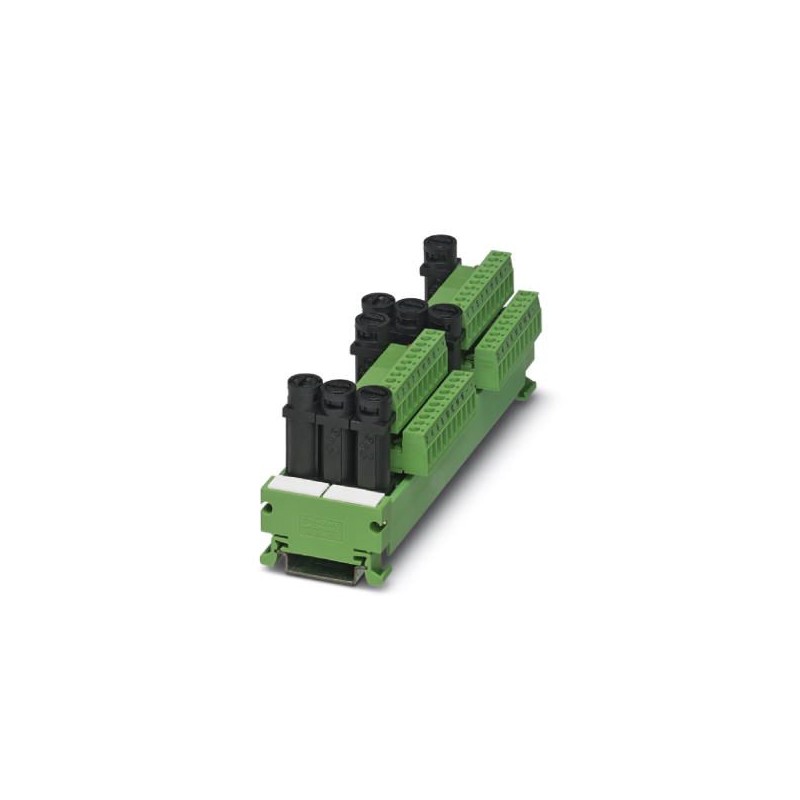

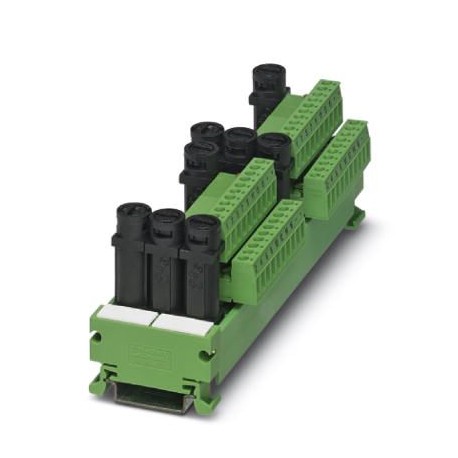

UM 45-MKDS/MDSTBW/ 8SI/SO262 2319443 PHOENIX CONTACT Interface module
UM 45-MKDS/MDSTBW/ 8SI/SO262
2319443
PHOENIX_CONTACT
50
Interface module
Fuse module, with screw connection, COMBICON plug-in connectors with flushing distance and coding against wrong plug, for installation on NS 35/7.5 or NS 32
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2319443 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356364898 |
| Weight per Piece (excluding packing) | 0.270 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Max. perm. operating voltage | 230 V AC |
|---|---|
| Max. perm. current (per branch) | 2 A |
| Mounting position | any |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | PCB connection |
|---|---|
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Number of positions | 8 |
Connection data for connection 2
| Connection name | COMBICON connection |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178: 1998-04 |
| Rated insulation voltage | 230 V |
| Rated surge voltage | 4 kV (1.2/50 μs) |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
