View larger

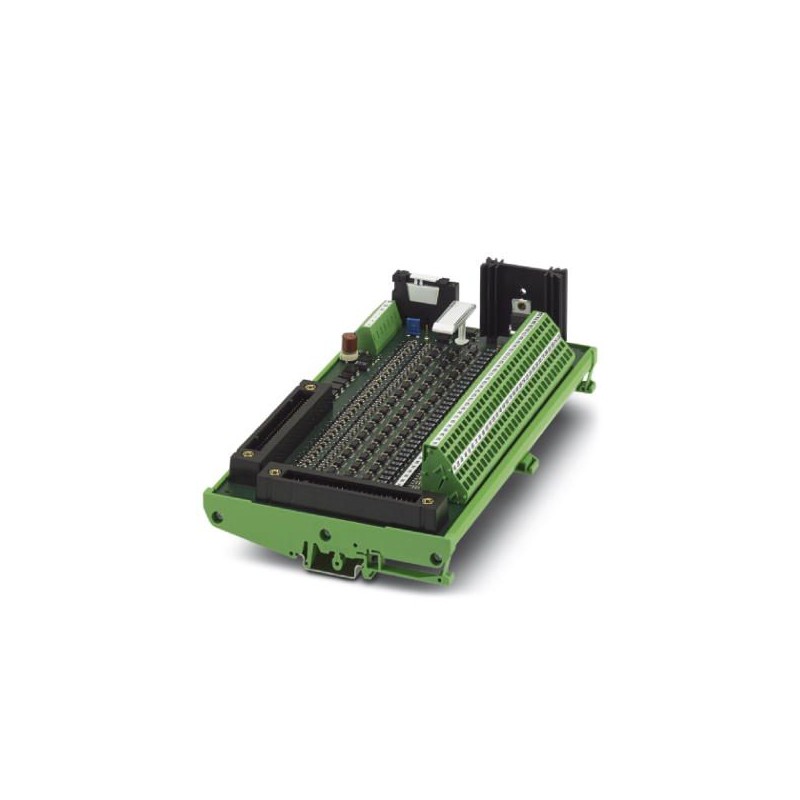

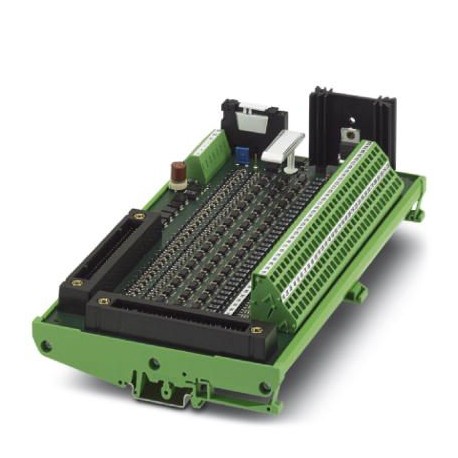

UM-32 NAM/I/MYCS 2968506 PHOENIX CONTACT Active module
UM-32 NAM/I/MYCS
2968506
PHOENIX_CONTACT
Active module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2968506 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356281904 |
| Weight per Piece (excluding packing) | 576.800 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC ±10 % (Supply voltage) |
|---|---|
| Typical input current at UN | max. 350 mA |
| Operating voltage display | Green LED |
Output data
| Maximum switching voltage | 26.4 V DC |
|---|---|
| Minimum switching voltage | 18.5 V DC |
| Maximum inrush current | 10 mA |
| Status display | Yellow LED |
| Error detection (line break / short-circuit) | LED red |
General
| No. of channels | 32 |
|---|---|
| Mechanical service life | approx. 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Housing insulation material | PVC |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 2 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Supported controller
| Corresponding control | YOKOGAWA CS3000 CentumVP |
|---|---|
| Corresponding I/O card | ADV151 |
| ADV161 | |
| Corresponding control | YOKOGAWA STARDOM |
| Corresponding I/O card | NFDV151 |
| NFDV161 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Rated surge voltage | 0.4 kV (basic insulation) |
| Degree of pollution | 2 |
| Overvoltage category | I |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371000eCl@ss 6.027371000eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
