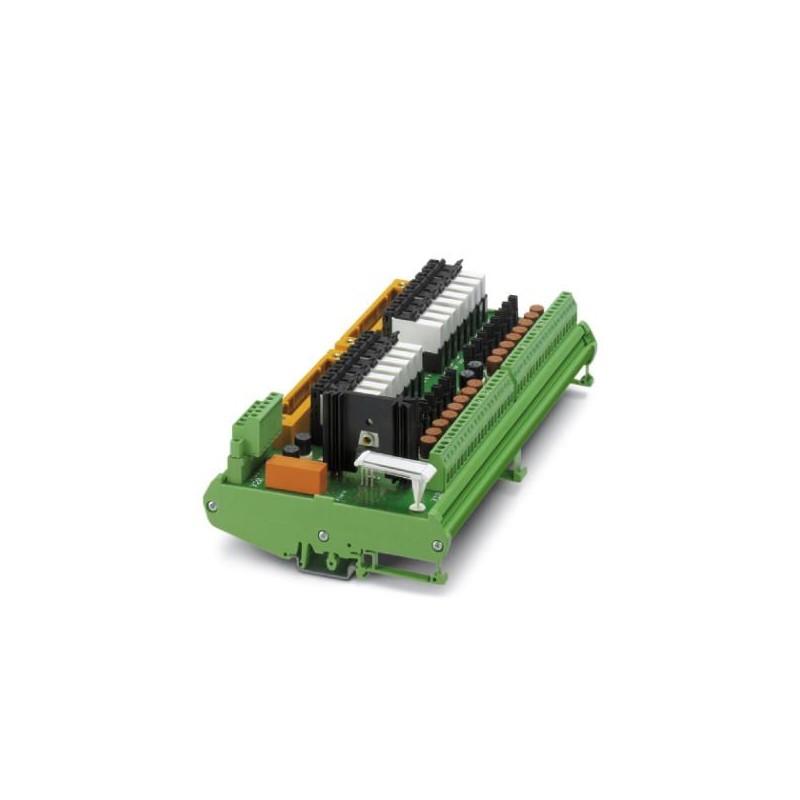

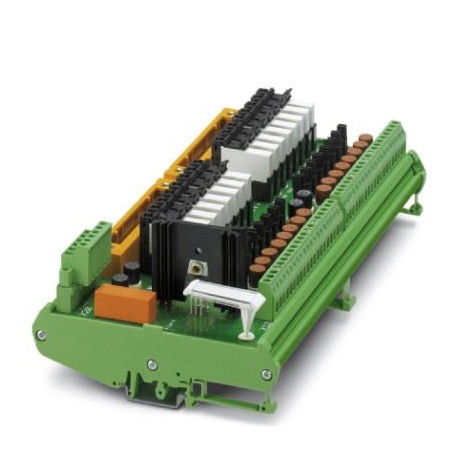

UM-2KS50-RM/16MR/24/SDV144/SO 2901585 PHOENIX CONTACT Relay Module
UM-2KS50-RM/16MR/24/SDV144/SO
2901585
PHOENIX_CONTACT
5
Product on demand only, returns will not be accepted.
Relay Module
VARIOFACE 16-channel input relay module with screw connection and 50-pole system connection, the excitation side is secured and optionally subject to potential, for Yokogawa SDV 144 card, module width: 240 mm
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2901585 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356612555 |
| Weight per Piece (excluding packing) | 650.000 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Input data
| Nominal input voltage UN | 24 V AC/DC (Supply, (P1+, P2+), pluggable fuse (IEC 60127-3/IV, 1AT)) |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 4 mA (± 10% per channel, pluggable fuse (IEC 60127-3/IV, 0.05AT)) |
| Protective circuit/component | Damping diode |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Red LED (fuse failure display) |
Output data
| Contact type | 1 N/O contact |
|---|---|
| Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 24 V AC/DC |
| Limiting continuous current | 50 mA |
| Maximum inrush current | 1 A (Supply 24 V DC/2 A, (P1+, P2+), pluggable fuse (IEC 60127-3/IV, 2AT)) |
Connection data for connection 1
| Connection name | Supply |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 0.34 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of positions | 6 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 1 |
| Number of positions | 50 |
Connection data for connection 3
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 2 |
| Number of positions | 20 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178: 1998-04 |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371000eCl@ss 6.027371000eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 20 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.004 A |
| Depth (EF000049) | 76 mm |
| Width (EF000008) | 240 mm |
| Height (EF000040) | 125.5 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
