UM-2KS50/DO32REL/CS/SO180 2311373 PHOENIX CONTACT Active module
UM-2KS50/DO32REL/CS/SO180
2311373
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Active module

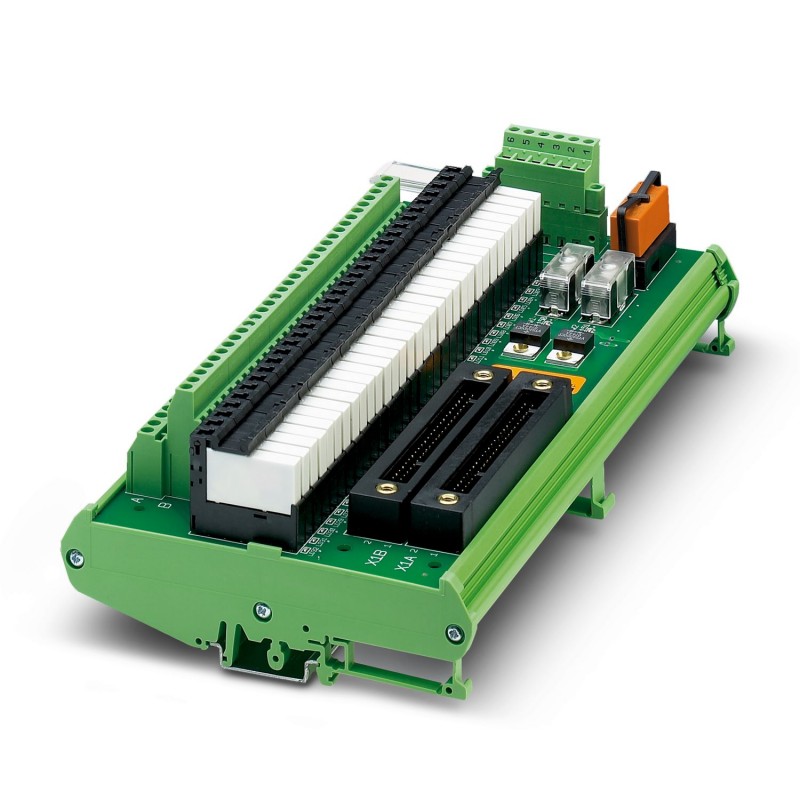

32-channel relay module with screw connection and redundant voltage supply. Suitable for Yokogawa ADV551 and ADV561 cards.
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2311373 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356317740 |
| Weight per Piece (excluding packing) | 831.200 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 15.6 mA ±20 % |
Output data
| Contact type | 1 N/O contact |
|---|---|
| Maximum switching voltage | 30 V AC |
| 36 V DC | |
| Minimum switching voltage | 100 mV AC/DC |
| Limiting continuous current | 50 mA |
| Min. switching current | 10 mA |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 1 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Supported controller
| Corresponding control | YOKOGAWA CS3000 CentumVP |
|---|---|
| Corresponding I/O card | ADV551 |
| ADV561 | |
| Corresponding control | YOKOGAWA STARDOM |
| Corresponding I/O card | NFDV551 |
| NFDV561 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Rated surge voltage | 0.5 kV |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.119030500eCl@ss 6.027069200eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 32 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.009 A |
| Depth (EF000049) | 65 mm |
| Width (EF000008) | 240 mm |
| Height (EF000040) | 126 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
