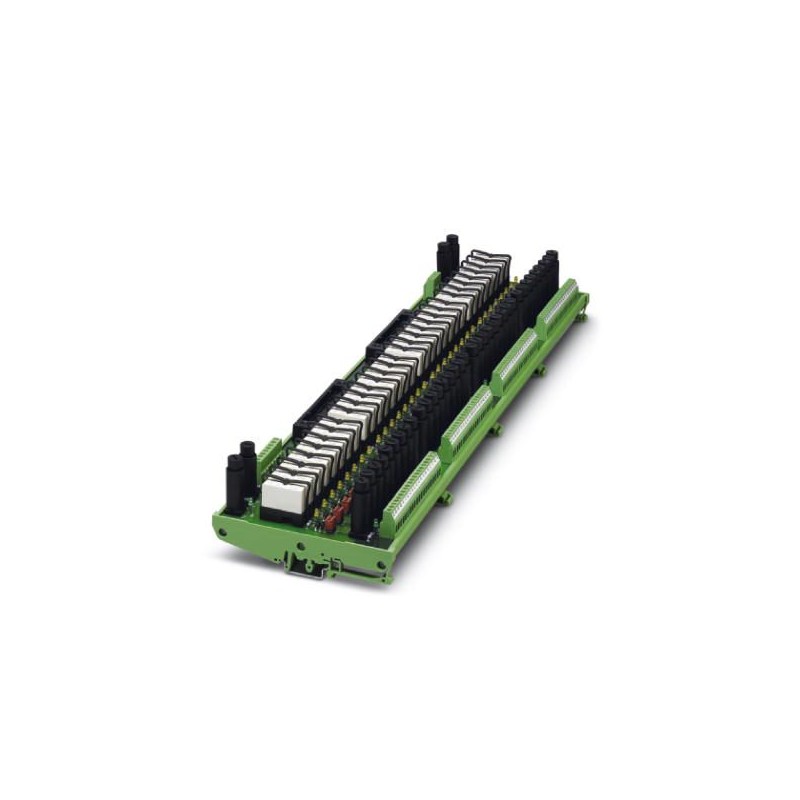

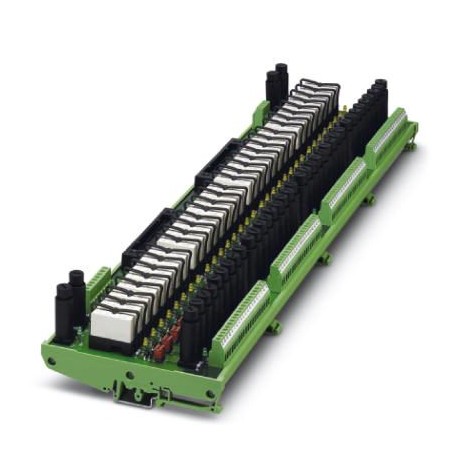

UM-2KS50/32-MR/21/ADV151/SO179 2310222 PHOENIX CONTACT Active module
UM-2KS50/32-MR/21/ADV151/SO179
2310222
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Active module
32-channel input relay module (1 NO contact) with screw and fuse connection (1 A). The I/O connection is redundant, with voltage power supply and a 50-pole power strip. Suitable for Yokogawa ADV 151 and ADV 161 cards.
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2310222 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356283724 |
| Weight per Piece (excluding packing) | 2,042.000 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 18 mA (per channel) |
Output data
| Contact type | 1 N/O contact |
|---|---|
| Contact material | AgNi |
| Maximum switching voltage | 24 V AC/DC (max. current per channel 100 mA, max. total current 1 A) |
| Typical response time | approx. 10 ms |
| Typical turn-off time | approx. 10 ms |
| Output fuse | 32x 80 mA 5x20 fuse |
| Fuse | 5x20 fuse |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 2 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Supported controller
| Corresponding control | YOKOGAWA CS3000 CentumVP |
|---|---|
| Corresponding I/O card | ADV151 |
| ADV161 | |
| Corresponding control | YOKOGAWA STARDOM |
| Corresponding I/O card | NFDV151 |
| NFDV161 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371000eCl@ss 6.027371000eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 50 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.018 A |
| Depth (EF000049) | 60.5 mm |
| Width (EF000008) | 519.5 mm |
| Height (EF000040) | 127.5 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
