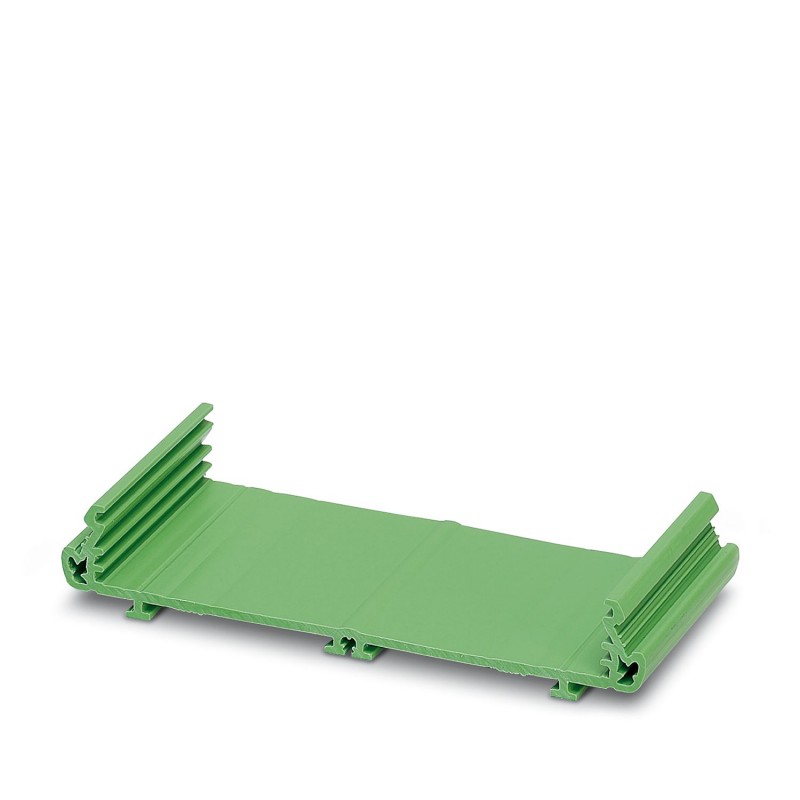

UM 108-PROFIL L7CM GN VPE50 2199527 PHOENIX CONTACT Electronic housing
UM 108-PROFIL L7CM GN VPE50
2199527
PHOENIX_CONTACT
50
Electronic housing
Extruded profile boxes, Basic profile, colour: green (6021), profile width (inside): 122.6 mm, profile width (outside): 107.5 mm, length: 70 mm, depth: 21.5 mm
Press-drawn section housings, Basic profile, profile width (internal): 122.6 mm, profile width (external): 107.5 mm, length: 70 mm, depth: 21.5 mm
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Component housing lower part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM108 |
| Type | Basic profile |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 01 |
| Depth | 21.5 mm |
| Length | 70 mm |
| External dimensions | |
| Profile width (external) | 107.5 mm |
| Internal dimensions | |
| Profile width (internal) | 122.6 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | green (RAL 6021) |
| Housing material | PVC |
| Ambient conditions | |
| Ambient temperature (operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 2 |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 70 mm |
| Height (EF000040) | 122.6 mm |
| Depth (EF000049) | 21.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
