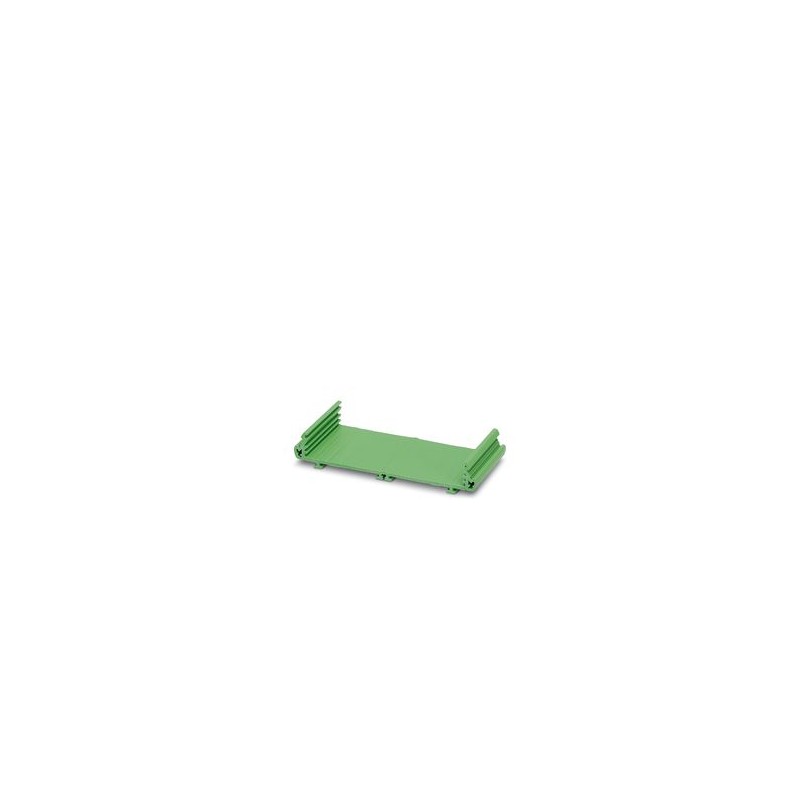

UM 108-PROFIL L19,6CM GN 1520606 PHOENIX CONTACT Extruded profile boxes, Basic profile, profile width (insid..
UM 108-PROFIL L19,6CM GN
1520606
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Extruded profile boxes, Basic profile, profile width (inside): 122.6 mm, profile width (outside): 107.5 mm, length: 196 mm, depth: 21.5 mm
Extruded Profile Boxes, Basic Profile
Press-drawn section housings, Basic profile, color: green (6021), profile width (internal): 122.6 mm, profile width (external): 107.5 mm, length: 196 mm, depth: 21.5 mm
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Component housing lower part |
| Product family | UM108 |
| Type | Basic profile |
| Housing type | Press-drawn section housings |
| Ventilation openings present | no |
| Housing series | UM |
| Depth | 21.5 mm |
| Length | 196 mm |
| External dimensions | |
| Profile width (external) | 107.5 mm |
| Internal dimensions | |
| Profile width (internal) | 122.6 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color | green (6021) |
| Surface characteristics | untreated |
| Housing material | PVC |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 2 |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 196 mm |
| Height (EF000040) | 122.6 mm |
| Depth (EF000049) | 21.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
