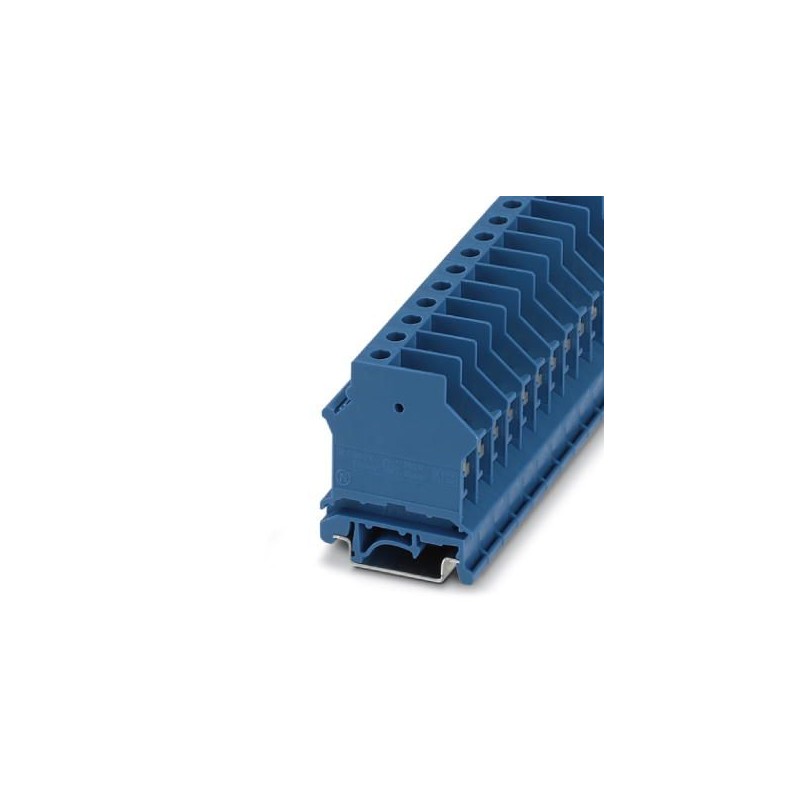

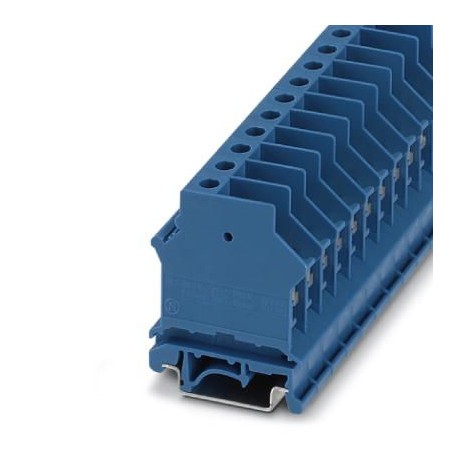

UKN 16 BU
3033090
PHOENIX_CONTACT
50
N disconnect terminal block
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 3033090 |
---|---|
Packing unit | 50 pc |
GTIN | 4017918092276 |
Weight per Piece (excluding packing) | 23.420 g |
Custom tariff number | 85369010 |
Country of origin | GR (Greece) |
Number of levels | 1 |
---|---|
Number of connections | 2 |
Color | blue |
Insulating material | PA |
Flammability rating according to UL 94 | V2 |
Maximum load current | 76 A (with 16 mm² conductor cross section) |
Current carrying capacity of the neutral busbar | 140 A |
Rated surge voltage | 6 kV |
Degree of pollution | 3 |
Overvoltage category | III |
Insulating material group | I |
Ambient temperature (operation) | -40 °C ... 100 °C |
Connection in acc. with standard | IEC 60947-7-1 |
Nominal current IN | 57 A (with 10 mm² conductor cross section) |
Maximum load current | 76 A (with 16 mm² conductor cross section) |
Nominal voltage UN | 400 V |
Connection in acc. with standard | IEC / EN |
Nominal current IN(upper level) | 57 A (with 10 mm² conductor cross section) |
Maximum load current (upper level) | 76 A (with 16 mm² conductor cross section) |
Nominal voltage UN | 400 V |
Open side panel | Yes |
Disconnect slide, screw thread | M3 |
Tightening torque, min | 0.6 Nm |
Tightening torque max | 0.8 Nm |
Result of surge voltage test | Test passed |
Surge voltage test setpoint | 7.3 kV |
Result of power-frequency withstand voltage test | Test passed |
Power frequency withstand voltage setpoint | 1.89 kV |
Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
Result of bending test | Test passed |
Bending test rotation speed | 10 rpm |
Bending test turns | 135 |
Bending test conductor cross section/weight | 0.5 mm² / 0.3 kg |
10 mm² / 2 kg | |
16 mm² / 2.9 kg | |
Tensile test result | Test passed |
Conductor cross section tensile test | 0.5 mm² |
Tractive force setpoint | 20 N |
Conductor cross section tensile test | 10 mm² |
Tractive force setpoint | 90 N |
Conductor cross section tensile test | 16 mm² |
Tractive force setpoint | 100 N |
Result of tight fit on support | Test passed |
Tight fit on carrier | NS 32/NS 35 |
Setpoint | 5 N |
Result of voltage-drop test | Test passed |
Requirements, voltage drop | ≤ 6,4 mV |
Result of temperature-rise test | Test passed |
Short circuit stability result | Test passed |
Conductor cross section short circuit testing | 10 mm² |
Short-time current | 1.2 kA |
Conductor cross section short circuit testing | 16 mm² |
Short-time current | 1.92 kA |
Result of thermal test | Test passed |
Proof of thermal characteristics (needle flame) effective duration | 30 s |
Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Static insulating material application in cold | -40 °C |
Note | Terminal point |
---|---|
Conductor cross section solid min. | 0.5 mm² |
Conductor cross section solid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 6 |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve max. | 10 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve max. | 10 mm² |
2 conductors with same cross section, solid min. | 0.5 mm² |
2 conductors with same cross section, solid max. | 4 mm² |
2 conductors with same cross section, stranded min. | 0.5 mm² |
2 conductors with same cross section, stranded max. | 4 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.5 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 4 mm² |
Connection method | Special and hybrid connection |
Stripping length | 11 mm |
Screw thread | M4 |
Tightening torque, min | 1.5 Nm |
Tightening torque max | 1.8 Nm |
Connection in acc. with standard | IEC 60947-7-1 |
---|---|
IEC / EN | |
Flammability rating according to UL 94 | V2 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
