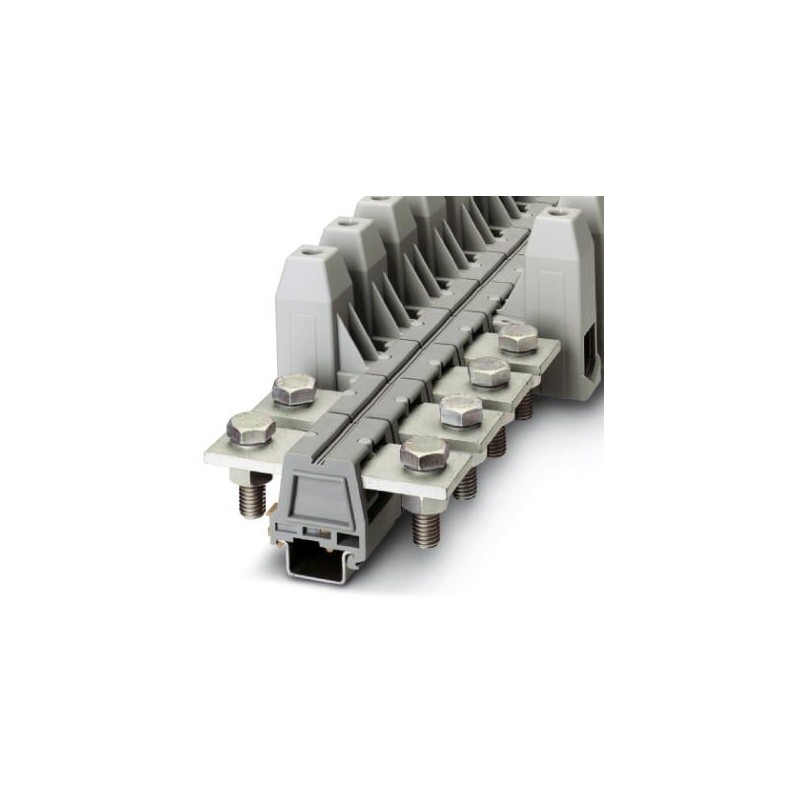

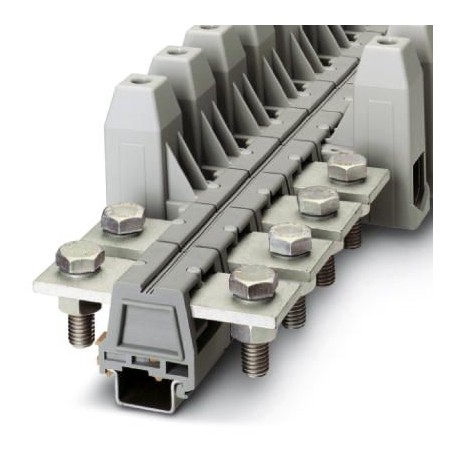

UHV150-M12/M12 2130237 PHOENIX CONTACT High Current Connectors
UHV150-M12/M12
2130237
PHOENIX_CONTACT
High Current Connectors
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2130237 |
|---|---|
| Packing unit | 10 pc |
| GTIN | 4017918053017 |
| Weight per Piece (excluding packing) | 295.760 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Color | gray |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | HB |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| Maximum load current | 309 A (with 150 mm² conductor cross section) |
| Nominal current IN | 309 A |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
Connection data
| Connection method | Bolt connection |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 50 mm² |
| Conductor cross section solid max. | 150 mm² |
| Conductor cross section flexible min. | 50 mm² |
| Conductor cross section flexible max. | 150 mm² |
| Min. AWG conductor cross section, flexible | 1/0 |
| Max. AWG conductor cross section, flexible | 300 kcmil |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 50 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 150 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 150 mm² |
| 2 conductors with same cross section, solid min. | 25 mm² |
| 2 conductors with same cross section, solid max. | 50 mm² |
| 2 conductors with same cross section, stranded min. | 35 mm² |
| 2 conductors with same cross section, stranded max. | 50 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 50 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 10 mm² |
| Max. cross section for cable lug connection | 150 mm² |
| Hole diameter, min. | 13 mm |
| Bolt diameter | 12 mm |
| Screw thread | M12 |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Cable lug connection according to standard | DIN 46235 |
| Min. cross section for cable lug connection | 25 mm² |
| Max. cross section for cable lug connection | 150 mm² |
| Hole diameter, min. | 13 mm |
| Bolt diameter | 12 mm |
| Screw thread | M12 |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Stripping length | 34 mm |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Power rail | 35 mm x 5 mm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
