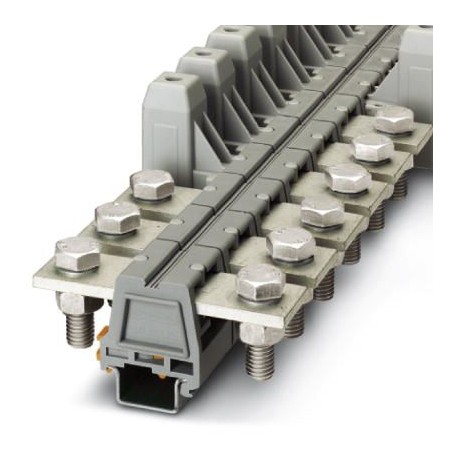

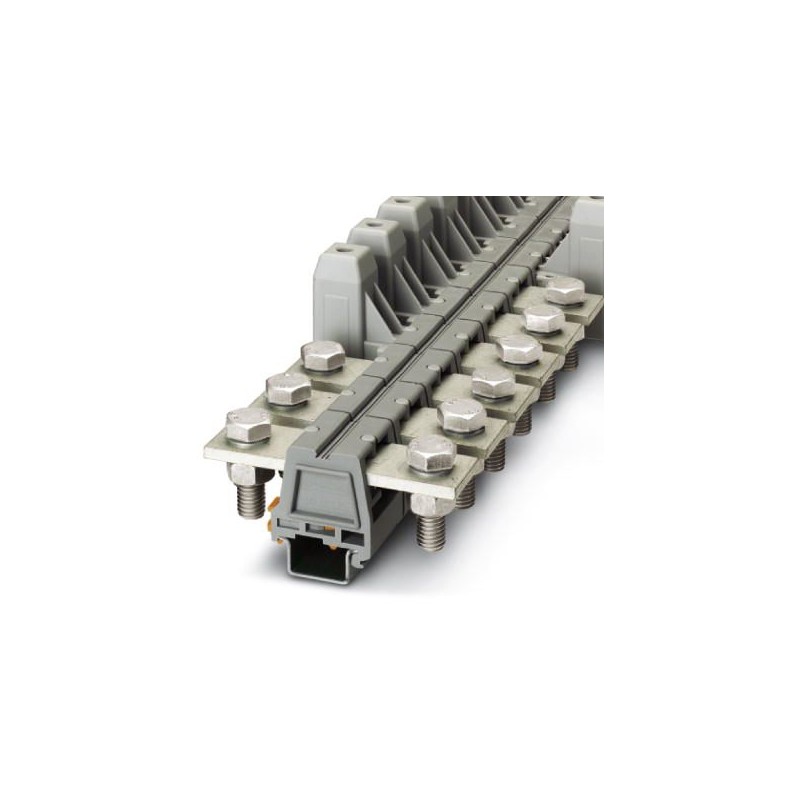

UHV 95-KH/M12
2130321
PHOENIX_CONTACT
1
High Current Connectors
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2130321 |
---|---|
Packing unit | 10 pc |
Note | Made to Order (non-returnable) |
GTIN | 4017918053109 |
Weight per Piece (excluding packing) | 278.880 g |
Custom tariff number | 85369010 |
Country of origin | IN (India) |
Number of levels | 1 |
---|---|
Number of connections | 2 |
Potentials | 1 |
Nominal cross section | 95 mm² |
Color | gray |
Insulating material | PA-F |
Flammability rating according to UL 94 | HB |
Rated surge voltage | 8 kV |
Degree of pollution | 3 |
Overvoltage category | III |
Insulating material group | II |
Maximum power dissipation for nominal condition | 7.54 W |
Maximum load current | 232 A (with 95 mm2conductor cross section) |
Nominal current IN | 232 A |
Nominal voltage UN | 1000 V |
Maximum load current | 232 A (with 95 mm2conductor cross section) |
Nominal current IN | 232 A |
Nominal voltage UN | 1000 V |
Open side panel | No |
Connection method | Bolt connection |
---|---|
Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section solid min. | 35 mm² |
Conductor cross section solid max. | 95 mm² |
Conductor cross section flexible min. | 35 mm² |
Conductor cross section flexible max. | 95 mm² |
Min. AWG conductor cross section, flexible | 2 |
Max. AWG conductor cross section, flexible | 3/0 |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 35 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve max. | 95 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve min. | 35 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve max. | 95 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 16 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 35 mm² |
Cable lug connection according to standard | DIN 46234 |
Min. cross section for cable lug connection | 10 mm² |
Max. cross section for cable lug connection | 95 mm² |
Hole diameter, min. | 13 mm |
Bolt diameter | 12 mm |
Screw thread | M12 |
Tightening torque, min | 25 Nm |
Tightening torque max | 30 Nm |
Cable lug connection according to standard | DIN 46235 |
Min. cross section for cable lug connection | 25 mm² |
Max. cross section for cable lug connection | 95 mm² |
Hole diameter, min. | 13 mm |
Bolt diameter | 12 mm |
Screw thread | M12 |
Tightening torque, min | 25 Nm |
Tightening torque max | 30 Nm |
Stripping length | 29 mm |
Screw thread | M12 |
Tightening torque, min | 25 Nm |
Tightening torque max | 30 Nm |
Power rail | 30 mm x 5 mm |
Connection method | Screw connection |
Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section solid min. | 25 mm² |
Conductor cross section solid max. | 95 mm² |
Conductor cross section AWG min. | 3 |
Conductor cross section AWG max. | 3/0 |
Conductor cross section flexible min. | 35 mm² |
Conductor cross section flexible max. | 95 mm² |
Min. AWG conductor cross section, flexible | 2 |
Max. AWG conductor cross section, flexible | 3/0 |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 35 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve max. | 95 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve min. | 35 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve max. | 95 mm² |
2 conductors with same cross section, solid min. | 25 mm² |
2 conductors with same cross section, solid max. | 35 mm² |
2 conductors with same cross section, stranded min. | 25 mm² |
2 conductors with same cross section, stranded max. | 35 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 16 mm² |
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 35 mm² |
Stripping length | 29 mm |
Screw thread | M8 |
Tightening torque, min | 15 Nm |
Tightening torque max | 20 Nm |
Connection in acc. with standard | CSA |
---|---|
IEC 60947-7-1 | |
IEC 60947-7-1 | |
Flammability rating according to UL 94 | HB |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
