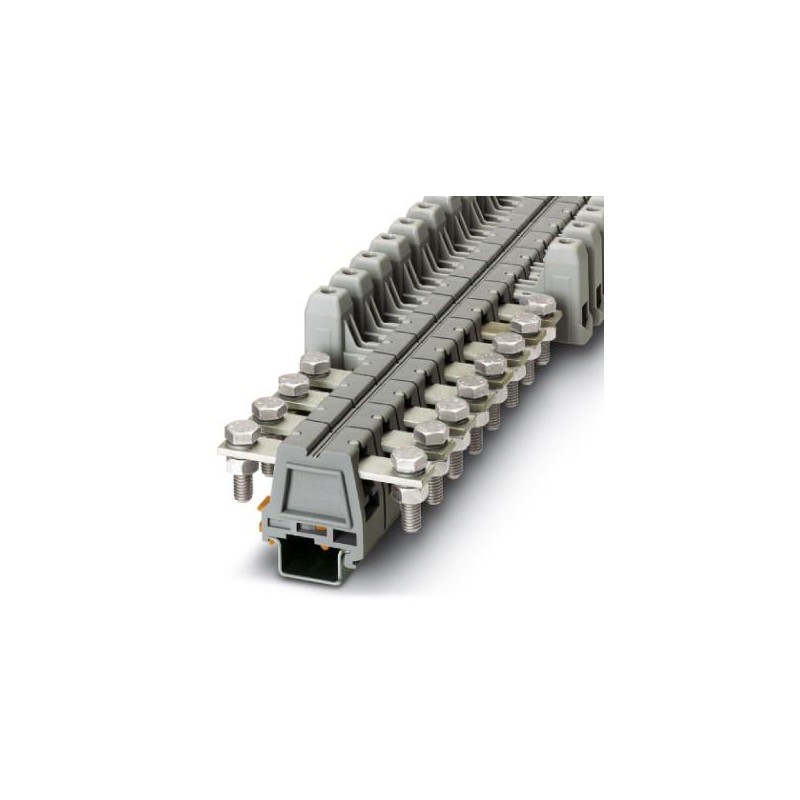

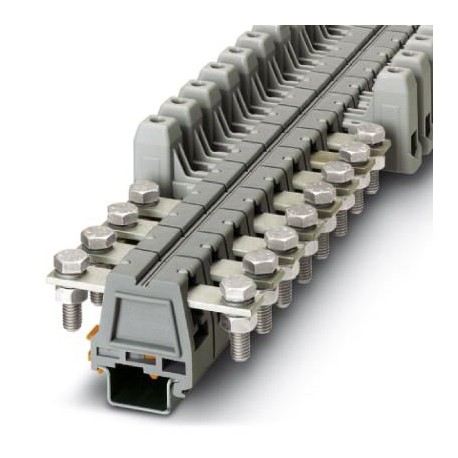

UHV 25-KH/M8 2130305 PHOENIX CONTACT High Current Connectors
UHV 25-KH/M8
2130305
PHOENIX_CONTACT
High Current Connectors
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2130305 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918053086 |
| Weight per Piece (excluding packing) | 105.250 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 25 mm² |
| Color | gray |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | HB |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| Maximum power dissipation for nominal condition | 3.26 W |
| Maximum load current | 101 A (with 25 mm² conductor cross section) |
| Nominal current IN | 101 A |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 6 mm² |
| Conductor cross section solid max. | 25 mm² |
| Conductor cross section AWG min. | 10 |
| Conductor cross section AWG max. | 3 |
| Conductor cross section flexible min. | 10 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Min. AWG conductor cross section, flexible | 8 |
| Max. AWG conductor cross section, flexible | 3 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 25 mm² |
| 2 conductors with same cross section, solid min. | 2.5 mm² |
| 2 conductors with same cross section, solid max. | 10 mm² |
| 2 conductors with same cross section, stranded min. | 4 mm² |
| 2 conductors with same cross section, stranded max. | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 10 mm² |
| Stripping length | 21 mm |
| Screw thread | M8 |
| Tightening torque, min | 15 Nm |
| Tightening torque max | 20 Nm |
| Power rail | 15 mm x 3 mm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141120eCl@ss 4.127141120eCl@ss 5.027141120eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120eCl@ss 8.027141120eCl@ss 9.027141120
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
