UCS SW 237-F AL 2203387 PHOENIX CONTACT Side panel for use with housing half shells 237 x 195 mm in size pan..
UCS SW 237-F AL
2203387
PHOENIX_CONTACT
10

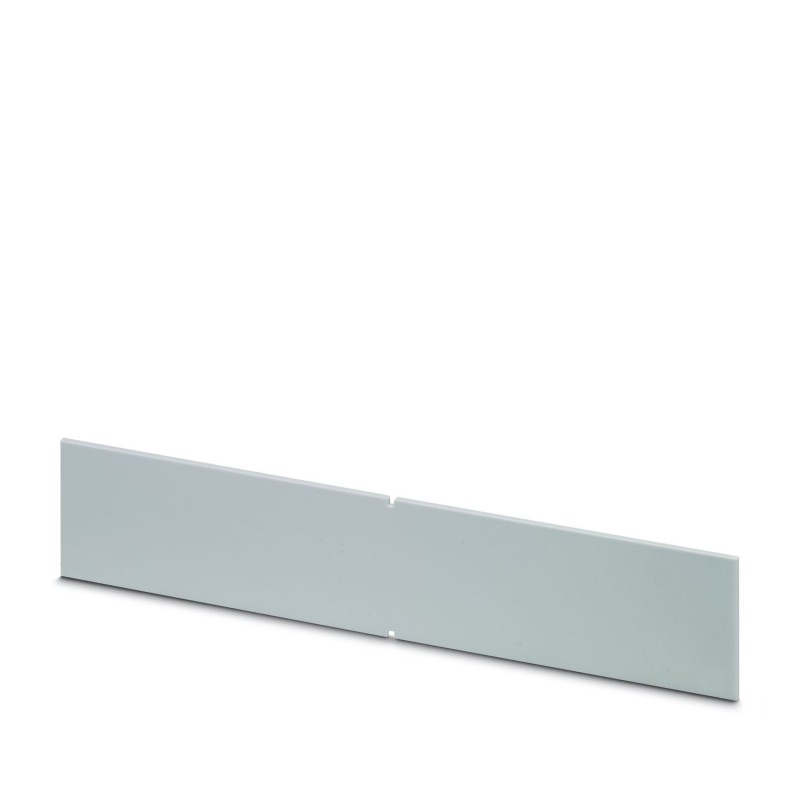

Side panel for use with housing half shells 237 x 195 mm in size; panel thickness: 2 mm; total height of housing: 47 mm; material: aluminum
Sidewall for use with housing halves size 237 x 195 mm; wall thickness 2 mm; total housing height 47 mm; Material: Aluminum
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Assembly note | Refer to the data sheet for the range in the download area. |
| Product type | Housing side panel |
| Housing type | Universal housings |
| Housing series | UCS |
| Type | Flat design |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
| Width | 208 mm |
| Height | 39.5 mm |
| Depth | 2 mm |
| Color (Housing) | Aluminum color |
| Material (Housing) | Aluminum |
| Housing material | Aluminum |
| Surface characteristics | anodized |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Thermal stability / ball thrust test | |
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
| Mechanical strength / tumbling barrel | |
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Test for substances that would hinder coating with paint or varnish | |
| Specification | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Degree of protection (IP code) | |
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Result, degree of protection, IP code | IP40 |
| Ambient conditions | |
| Max. IP code to attain | IP40 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Mounting type | Slot |
| Type of packaging | PE bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 208 mm |
| Height (EF000040) | 39.5 mm |
| Depth (EF000049) | 2 mm |
