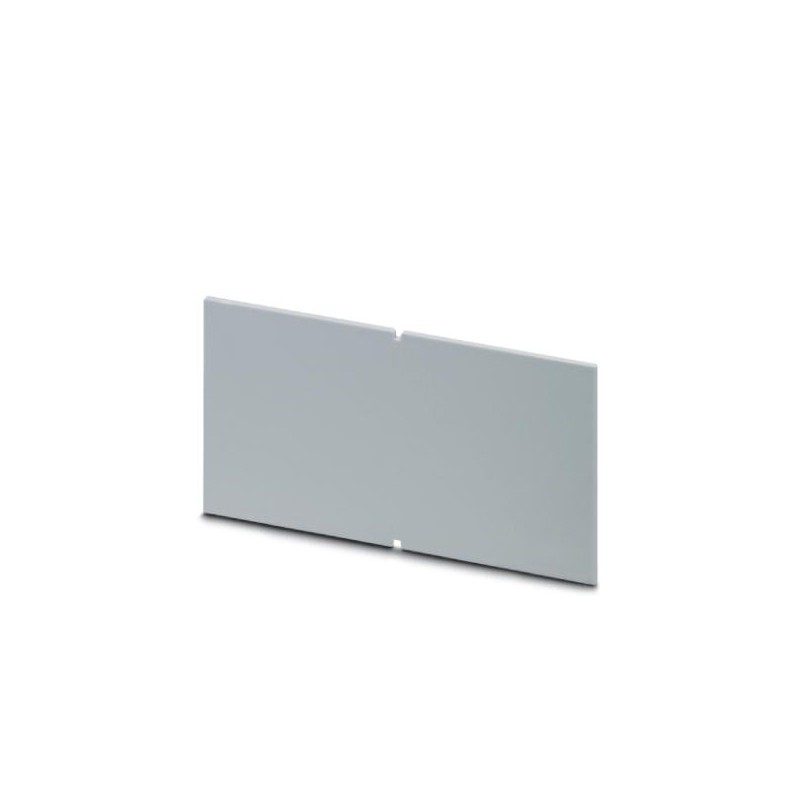

UCS SW 145-H AL 2203377 PHOENIX CONTACT Side panel for use with housing half shells 195 × 145 mm and 145 × 1..
UCS SW 145-H AL
2203377
PHOENIX_CONTACT
10
Side panel for use with housing half shells 195 × 145 mm and 145 × 125 mm in size, panel thickness: 2 mm, total height of housing: 67 mm, material: aluminum
Sidewall for use with housing halves of the sizes: 195x145mm and 145x125mm and 145x125mm, wall thickness 2mm, total housing height: 67mm, material: aluminium
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (depending on power dissipation) |
Mechanical strength/tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
|---|---|
| Height of fall | 50 cm |
| Number of drop cycles | 50 |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
|---|---|
| Specification | VW PV 3.10.7:2005-02 |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180506 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 116 mm |
| Height (EF000040) | 59.4 mm |
| Depth (EF000049) | 2 mm |
