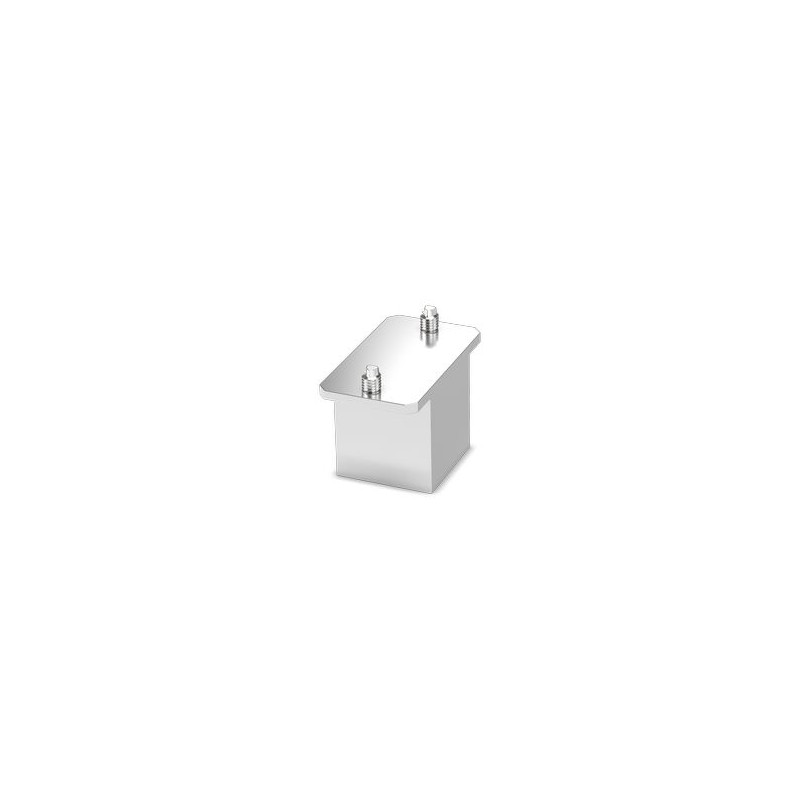

UCS HSP 22-25 AL 1481702 PHOENIX CONTACT Thermal expansion element for housing series: UCS, type: Thermal ex..
UCS HSP 22-25 AL
1481702
PHOENIX_CONTACT
Thermal expansion element for housing series: UCS, type: Thermal expansion element, material: Aluminum, anodized, width: 39 mm, Additional machining is required for the fixing of the thermal expansion element on the heat sink.
Thermal Expansion Element for Housing Series: UCS, Type: Thermal Expansion Element, Material: Aluminium, Anodised, Item Family: UCS, Width: 39 mm, Additional machining is required for the attachment of the thermal expansion element to the heat sink.
Heat expansion element for housing series: UCS, type: Heat expansion element, material: Aluminum, anodized, product range: UCS, width: 39 mm, Additional machining is required to attach the heat expansion element to the heatsink.
Telecommunication equipment/office devices > Equipment ventilator
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Additional machining is required to attach the heat expansion element to the heatsink. |
| General | Refer to the data sheet for the range in the download area. |
| General | Individual milling possible. |
| General | Mounting screws are supplied as standard. |
| General | Further information and detailed dimensions are available in the download area. |
| General | We recommend the use of an application-specific TIM material (Thermal Interface Material). |
| Product type | Heat sink |
| Product family | UCS |
| Type | Heat expansion element |
| Housing type | Heatsink |
| Housing series | UCS |
| Cross section AWG | (converted acc. to IEC) |
| Width | 39 mm |
| Depth | 25 mm |
| Length | 22 mm |
| Color | aluminum color |
| Material | Aluminum |
| Surface characteristics | anodized |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Test for substances that would hinder coating with paint or varnish | |
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Mounting type | Screw mounting |
| Mounting position | any |
| Tightening torque / speed | Screw connection to the heatsink: 0.8 Nm-1 Nm / 500 rpm-1000 rpm |
| Type of packaging | Box packaging |
