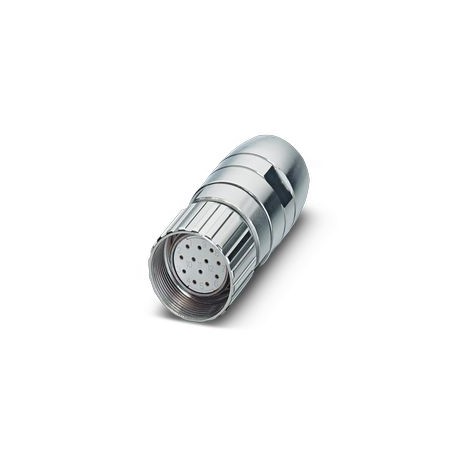

UC-19S1N1280DUX 1242172 PHOENIX CONTACT M23, Connector for cables, series: UC, straight, shielded: yes, Scre..
UC-19S1N1280DUX
1242172
PHOENIX_CONTACT
M23, Connector for cables, series: UC, straight, shielded: yes, Screw lock, No. of poles: 16+3, Direction of rotation: Standard, contact connection type: Female, Solder cup, coding: N, The item does not contain lead according to the RoHS II directive without the exception 6c (Pb<.; 0.1 %)
Plug-in connector. for cables
M23, Cable connector, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Socket, Solder cup, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Circular connector (cable-side) |
| Insulating body | |
| Coding | N |
| Insertion/withdrawal cycles | 100 |
| Connection method | Solder cup |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 19 |
| Direction of rotation | Standard |
| Connection profile | 16+3 |
| Contact diameterPower contacts | 1.5 mm |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
| Litz wire cross-sectionPower contactsmax. | 1 mm² |
| Rated currentPower contacts | 10 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 1 mm |
| Litz wire cross-sectionSignal contactsmin. | 0.08 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Nominal current per signal contact | 8 A |
| Contact diameter Data contacts | 1.5 mm |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
