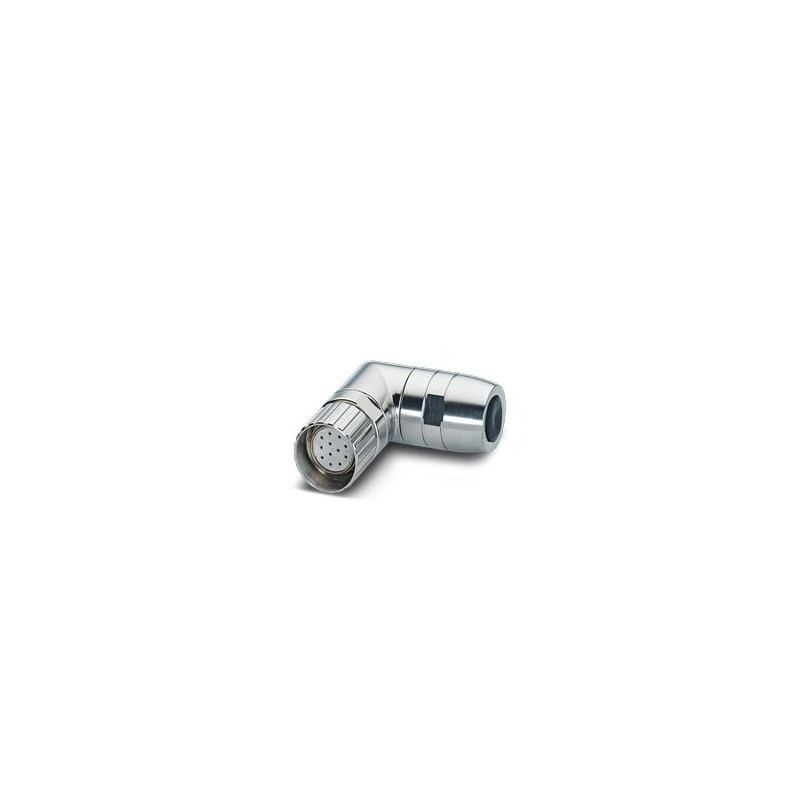

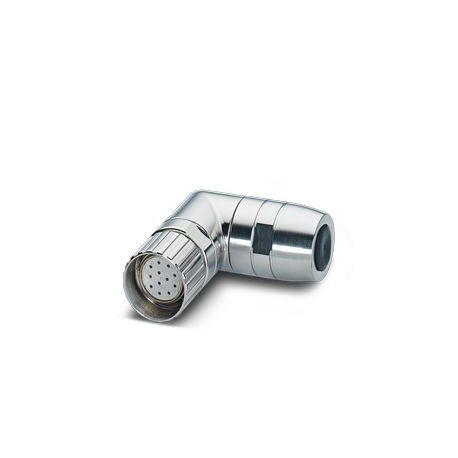

UC-17S1N8AT0ACX 1242165 PHOENIX CONTACT M23, Cable Connector, Series: UC, Angled, Shielded: Yes, Screw Lock,..
UC-17S1N8AT0ACX
1242165
PHOENIX_CONTACT
8
M23, Cable Connector, Series: UC, Angled, Shielded: Yes, Screw Lock, No. of Poles: 17, Direction of Rotation: Standard, Contact Connection Type: Female, Crimp Connection, Cable Diameter Range: 11.5 mm ... 13.5 mm, coding: N, Item is lead-free according to RoHS II without exception 6c (Pb< 0.1%)
M23, Cable connector, series: UC, angled, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 11.5 mm ... 13.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| General | Order crimp contacts Ø 1 mm separately |
| Product type | Circular connector (cable-side) |
| Insulating body | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Connection profile | 17 |
| Contact diameterPower contacts | 1 mm |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 11.5 mm ... 13.5 mm |
| Seal material | FPM |
