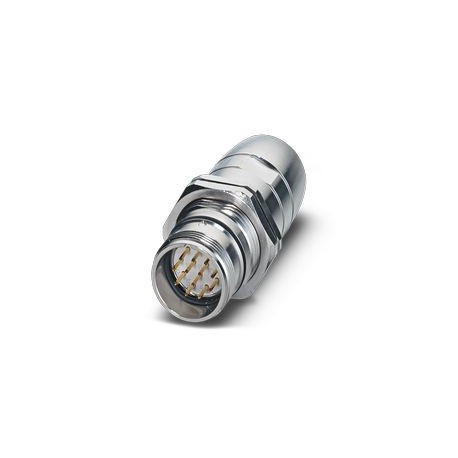

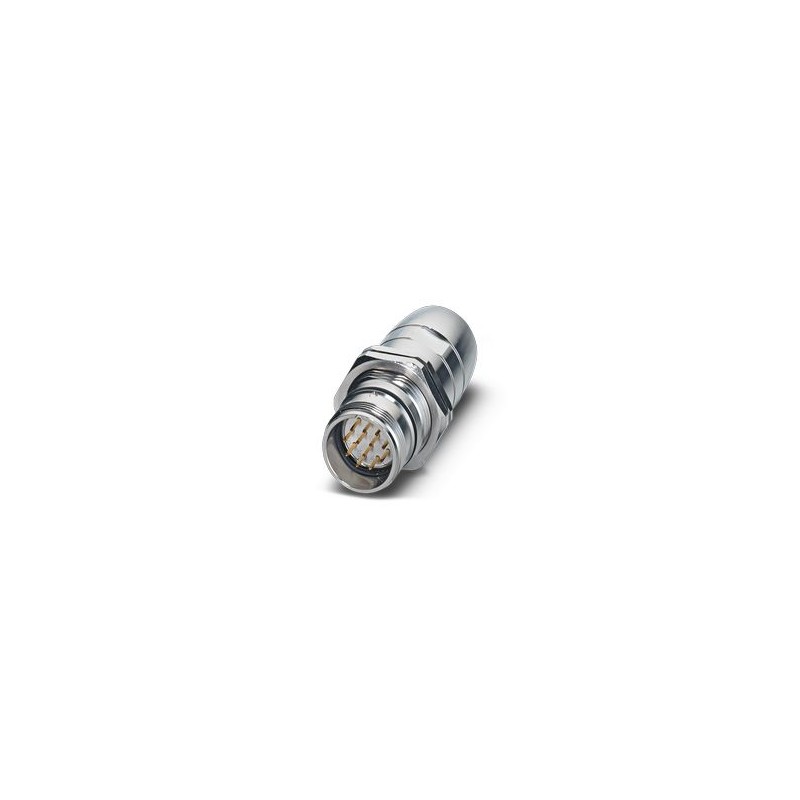

UC-17P1N8AQPADX 1245322 PHOENIX CONTACT Rear wall grommet
UC-17P1N8AQPADX
1245322
PHOENIX_CONTACT
12
Rear wall grommet
M23, Rear panel feed-through, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial O-ring, Central fixing, cable diameter range: 6.5 mm ... 14.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Circular connector (cable-side) |
| Flammability rating according to UL 94 | V0 |
| Insulating body | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Connection profile | 17 |
| Contact diameterPower contacts | 1 mm |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Order information: | Order contact inserts separately |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | Pg16 |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 6.5 mm ... 14.5 mm |
