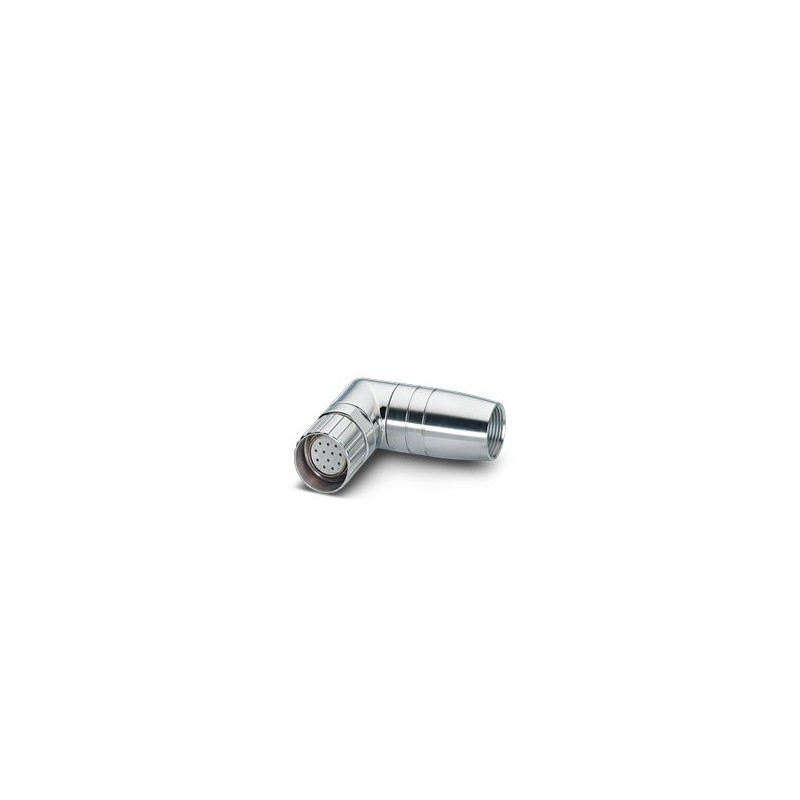

UC-12S1N12NNDUX 1242116 PHOENIX CONTACT M23, Cable connector, series: UC, angled, shielded: yes, Screw lock,..
UC-12S1N12NNDUX
1242116
PHOENIX_CONTACT
M23, Cable connector, series: UC, angled, shielded: yes, Screw lock, No. of poles: 12, Direction of rotation: Standard, contact connection type: Female, Solder cup, cable diameter range: 2 mm ... 14.5 mm, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Plug-in connector. for cables
M23, Cable connector, series: UC, angled, shielded: yes, Screw locking, No. of poles: 12, Direction of rotation: Standard, contact connection type: Female, Soldering cup, cable diameter range: 2 mm ... 14.5 mm, coding: N, RoHS II lead-free article without exception 6c (Pb< 0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Circular connector (cable side) |
| Insulating body | |
| Codification | N |
| Plug Cycles | 50 |
| Connection type | Soldering cup |
| Contact Switching Type | Female |
| application | Signal |
| Number of poles | 12 |
| Direction of rotation | Standard |
| Plug Face | 12 |
| Contact DiameterPower Contacts | 1 mm |
| Braided yarn sectionPower Contactsmin. | 0.08 mm² |
| Braided yarn sectionPower ContactsMax. | 1 mm² |
| Rated CurrentPower Contacts | 8 A |
| Nominal voltage | 48 V AC |
| 74 V DC | |
| Dimensioning Transient Voltage | 1.5 kV |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Housing | |
| Order Indication: | Contact inserts must be ordered separately |
| Shell material | Metal |
| Lock Type | Screw lock |
| Pg Cable Glands | Pg16 |
| Protection Index (inserted) | IP67 |
| Thread Type | M23 |
| Meeting | |
| Cable Outer Diameter | 2 mm ... 14.5 mm |
| Gasket material | NBR |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
