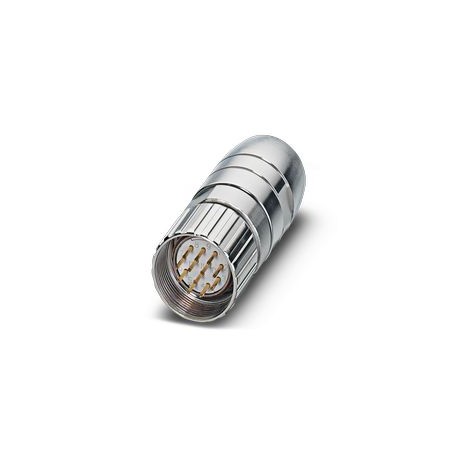

UC-09P1N1280AAX 1242092 PHOENIX CONTACT M23, Cable connector, series: UC, straight, shielded: yes, Screw loc..
UC-09P1N1280AAX
1242092
PHOENIX_CONTACT
M23, Cable connector, series: UC, straight, shielded: yes, Screw lock, No. of poles: 8+1, Direction of rotation: Standard, contact connection type: Male, Solder cup, cable diameter range: 7 mm ... 8.5 mm, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Cable connector
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Circular connector (cable side) |
| Insulating body | |
| Codification | N |
| Plug Cycles | 50 |
| Connection type | Soldering cup |
| Contact Switching Type | male |
| application | Signal |
| Number of poles | 9 |
| Direction of rotation | Standard |
| Plug Face | 8+1 |
| Contact DiameterPower Contacts | 2 mm |
| Braided yarn sectionPower Contactsmin. | 0.08 mm² |
| Braided yarn sectionPower ContactsMax. | 2.5 mm² |
| Rated CurrentPower Contacts | 20 A |
| Nominal voltage | 48 V AC |
| 74 V DC | |
| Dimensioning Transient Voltage | 1.5 kV |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Contact DiameterSignal Contacts | 1 mm |
| Braided yarn sectionSignal Contactsmin. | 0.08 mm² |
| Braided yarn sectionSignal ContactsMax. | 1 mm² |
| Nominal current per signal contact | 8 A |
| Housing | |
| Shell material | Metal |
| Lock Type | Screw lock |
| Pg Cable Glands | without |
| Protection Index (inserted) | IP67 |
| Thread Type | M23 |
| Meeting | |
| Cable Outer Diameter | 7 mm ... 8.5 mm |
| Gasket material | FPM |
