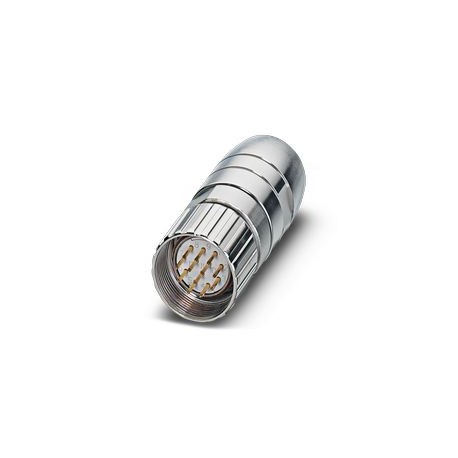

UC-06P1N1280ABX 1242070 PHOENIX CONTACT M23, Cable connector, series: UC, straight, shielded: yes, Screw loc..
UC-06P1N1280ABX
1242070
PHOENIX_CONTACT
M23, Cable connector, series: UC, straight, shielded: yes, Screw lock, No. of poles: 6, Direction of rotation: Standard, contact connection type: Male, Solder cup, cable diameter range: 9.5 mm ... 11.5 mm, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Cable connector
M23, Cable connector, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 9.5 mm ... 11.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Circular connector (cable-side) |
| Insulating body | |
| Coding | N |
| Insertion/withdrawal cycles | 50 |
| Connection method | Solder cup |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 6 |
| Direction of rotation | Standard |
| Connection profile | 6 |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
| Litz wire cross-sectionPower contactsmax. | 2.5 mm² |
| Rated currentPower contacts | 20 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 9.5 mm ... 11.5 mm |
| Seal material | FPM |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
