UC-0000000T0DUX
1242069
PHOENIX_CONTACT
1

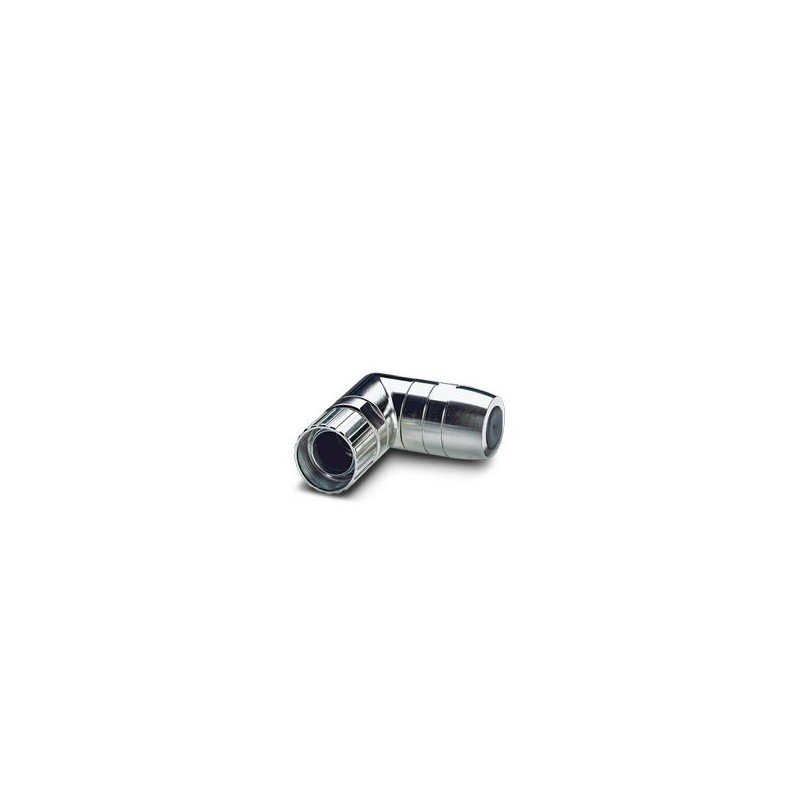

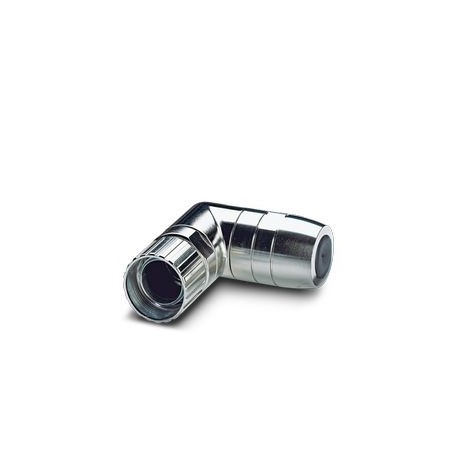

Overhead housing for plug-in connector for cables
Sleeve housing for cable connector, angled, Screw locking mechanism, M23, shielded: yes, cable diameter range: 2 mm ... 14.5 mm, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product type | Sleeve housings |
Connection profile | 12 |
Application | Signal |
Series | UC |
Shielded | yes |
Thread type | M23 |
Connection method | Crimp connection |
Seal material | FPM or NBR or EPDM |
Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
Gasket and O-ring material | FPM |
Housing material | Metal |
Type | angled |
External cable diameter | 2 mm ... 14.5 mm |
Ambient conditions | |
Degree of protection | IP67 |
Ambient temperature (operation) | -20 °C ... 125 °C |
Altitude | 2000 m |
Connection method | Crimp connection |
