UC-000000090DUX 1242058 PHOENIX CONTACT Mating connector, The item does not contain lead according to the Ro..
UC-000000090DUX
1242058
PHOENIX_CONTACT
Mating connector, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)

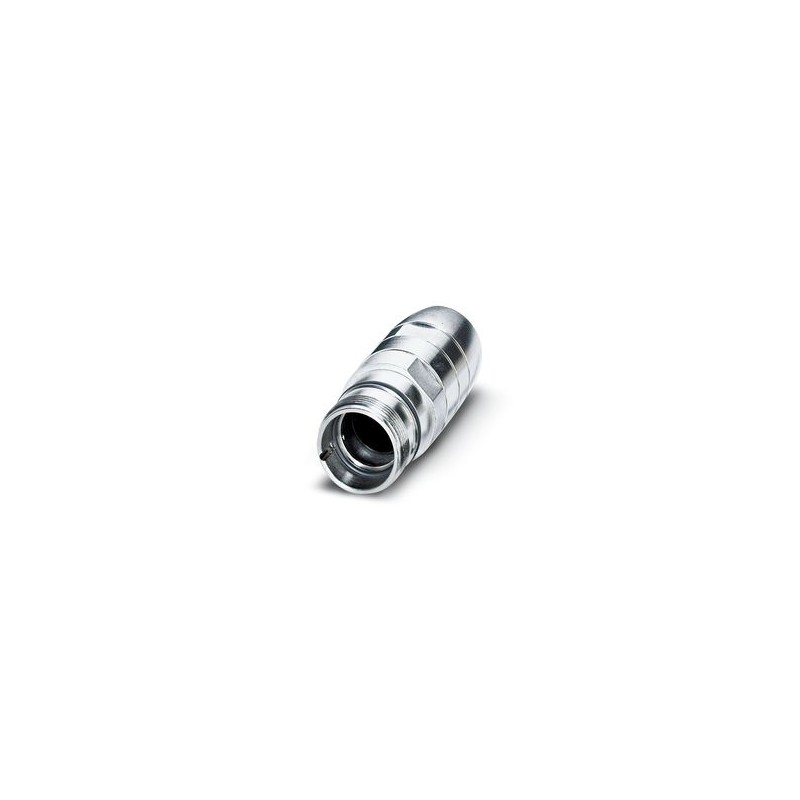

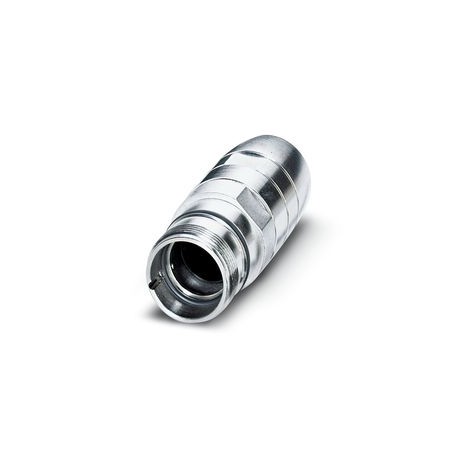

Overhead housing for plug-in connector for cables
Coupler connector, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Connection method | Crimp connection |
| Product type | Circular connector (cable-side) |
| Connection profile | 12 |
| Application | Signal |
| Series | UC |
| Shielded | yes |
| Thread type | M23 |
| Seal material | FPM or NBR or EPDM |
| Housing material | Metal |
| Conductor connection | |
| Connection method | Crimp connection |
| Crimp connection | |
| Crimp connection | |
| Type | straight |
| External cable diameter | 2 mm ... 14.5 mm |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of housing (EF006980) | Straight |
| Ambient temperature (EF002386) | -20 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
