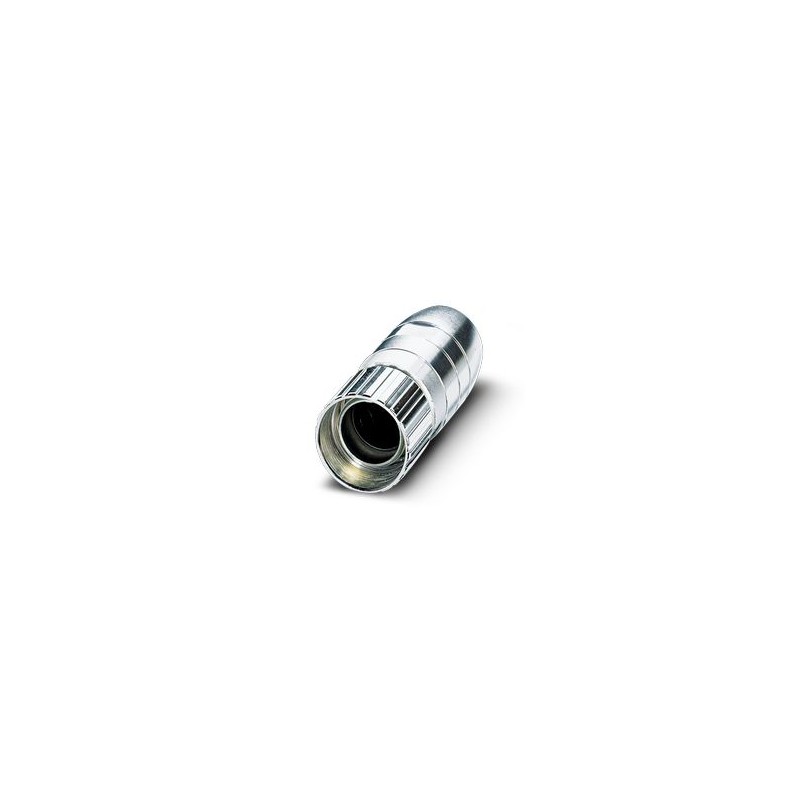

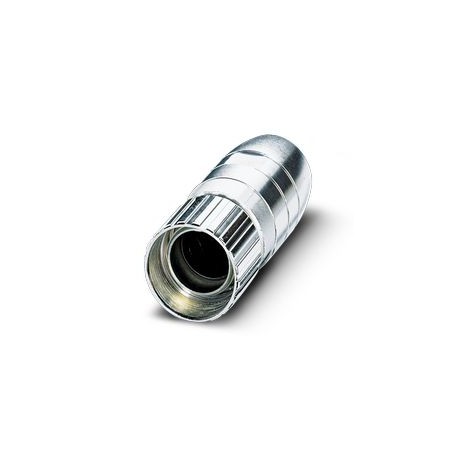

UC-000000080DUX 1237414 PHOENIX CONTACT Housing for circular connector, The item does not contain lead accor..
UC-000000080DUX
1237414
PHOENIX_CONTACT
20
Housing for circular connector, The item does not contain lead according to the RoHS II directive without the exception 6c (Pb<.; 0.1%)
Overhead housing for plug-in connector for cables
Sleeve housing for cable connector, straight, Screw locking mechanism, M23, shielded: yes, cable diameter range: 2 mm ... 14.5 mm, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Sleeve housings |
| Connection profile | 12 |
| Application | Signal |
| Series | UC |
| Shielded | yes |
| Thread type | M23 |
| Seal material | FPM or NBR or EPDM |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Gasket and O-ring material | FPM |
| Housing material | Metal |
| Type | straight |
| External cable diameter | 2 mm ... 14.5 mm |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
