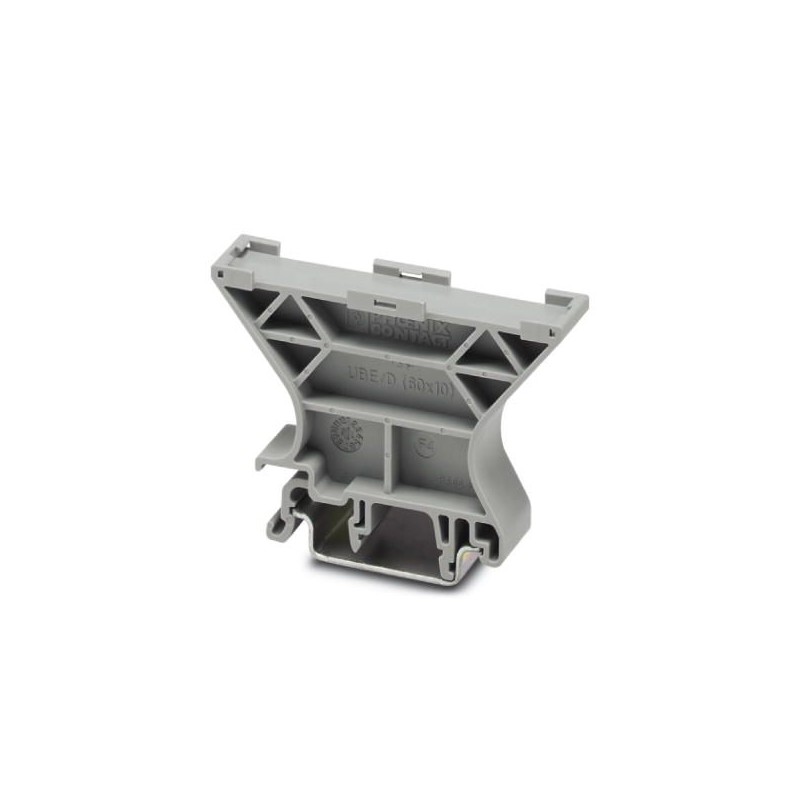

UBE/D (60X10) 0803719 PHOENIX CONTACT Marker carriers
UBE/D (60X10)
0803719
PHOENIX_CONTACT
50
Marker carriers
Support for indexes for terminal strips, for the identification of terminal groups, for mounting on the NS 32 or NS 35/7.5 terminal strip, callout size: 60 x 10 mm
Domestic switching devices > Mounting for labelling material
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0803719 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 587 (C-3-2017) |
| GTIN | 4055626146263 |
| Weight per Piece (excluding packing) | 8.040 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
General
| Color | gray |
|---|---|
| Base element material | PA |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V0 |
| Material | PA |
| RoHS compliant | Yes |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | DIN rail mounting |
| Result | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| Class I | 2 |
| Class F | 2 |
| Surface flammability (ASTM E 162) | passed |
| Specific optical density of smoke (ASTM E 662) | passed |
| Smoke gas toxicity (SMP 800C) | passed |
| Heat dissipation calorimetric (ASTM E 1354) | 28 MJ/kg |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
| R26 | HL 1 - HL 3 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|---|
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Classifications
eCl@ss 4.0 24190208 eCl@ss 4.1 24190208 eCl@ss 5.0 27149103 eCl@ss 5.1 27141100 eCl@ss 6.0 27149100 eCl@ss 7.0 27149153 eCl@ss 8.0 27149153 eCl@ss 9.0 27144075
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39131505
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
