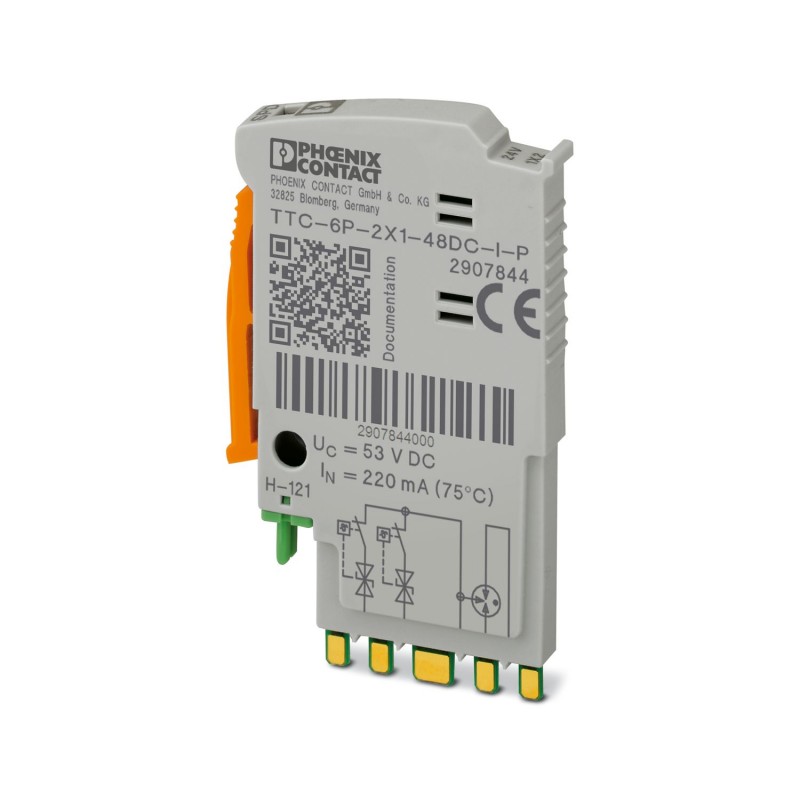

TTC-6P-2X1-48DC-I-P 2907844 PHOENIX CONTACT Surge protection plug with integrated status indicator on the mo..
TTC-6P-2X1-48DC-I-P
2907844
PHOENIX_CONTACT
Surge protection plug with integrated status indicator on the module for two signal wires with a common reference potential. Nominal voltage: 48 V DC
Pluggable surge protection with status indicator integrated into the module for two signal conductors with common reference potential. Rated voltage: 48 V DC
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Replacement plug |
| Product family | TERMITRAB complete |
| Type | Male |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Nominal voltage UN | 48 V DC |
| Connection method | pluggable |
| Dimensional drawing |  |
| Width | 6.2 mm +0.1 mm |
| Height | 39 mm |
| Depth | 60.3 mm |
| Color | light gray (RAL 7035) |
| gray (RAL 7042) | |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing material | PBT |
| Maximum continuous voltage UC | 53 V DC |
| Rated current | 220 mA (75 °C) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| EN 61643-21 | |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Mounting type | on base element |
| Feature Name | Feature Value |
|---|---|
| Nominal voltage DC (EF008799) | 48 V |
