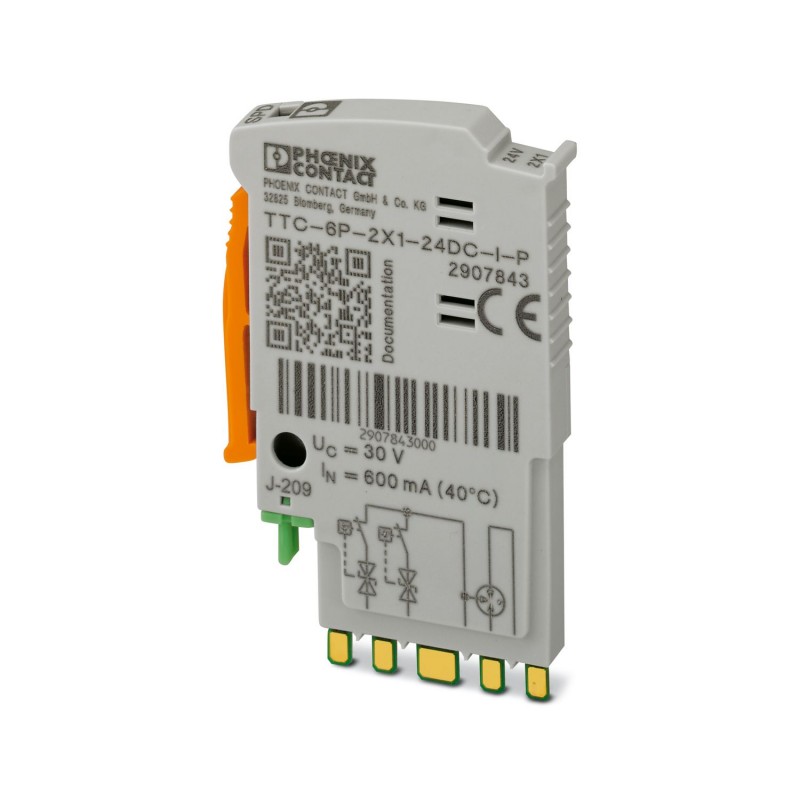

TTC-6P-2X1-24DC-I-P 2907843 PHOENIX CONTACT Surge protection plug with integrated status indicator on the mo..
TTC-6P-2X1-24DC-I-P
2907843
PHOENIX_CONTACT
Surge protection plug with integrated status indicator on the module for two signal wires with a common reference potential. Nominal voltage: 24 V DC
Trabtech (TT)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2907843 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 128 (C-4-2019) |
| GTIN | 4055626634715 |
| Weight per Piece (excluding packing) | 16.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | light grey RAL 7035 |
| Mounting type | on base element |
| Type | Male |
Protective circuit
| Nominal voltage UN | 24 V DC |
|---|---|
| Maximum continuous voltage UC | 30 V DC |
| Rated current | 600 mA (56 °C) |
Standards and Regulations
| Standards/specifications | EN 61643-21 2001 + A1:2009 + A2:2013 |
|---|---|
| IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27130890 |
|---|---|
| eCl@ss 6.0 | 27130800 |
| eCl@ss 7.0 | 27130890 |
| eCl@ss 8.0 | 27130890 |
| eCl@ss 9.0 | 27130890 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN.pdf | 27 Mbytes |
|
