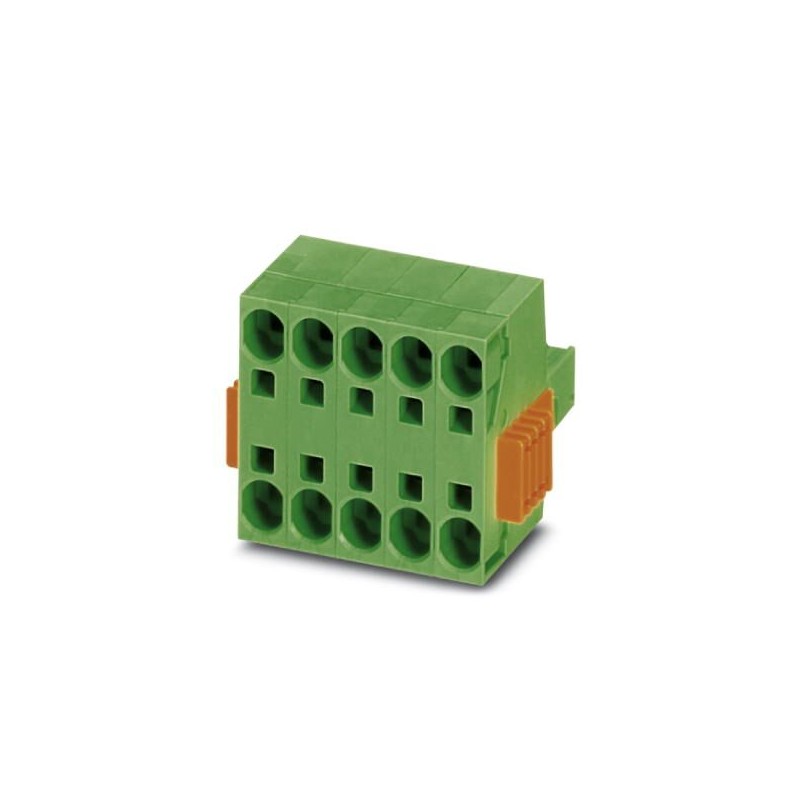

TSPC 5/ 6-STCL-7,62GY31CPBDWHNZ 1839033 PHOENIX CONTACT PCB connector, nominal current: 41 A, rated voltage ..
TSPC 5/ 6-STCL-7,62GY31CPBDWHNZ
1839033
PHOENIX_CONTACT
10
PCB connector, nominal current: 41 A, rated voltage (III/2): 1000 V, number of positions: 6, pitch: 7.62 mm, connection method: Push-in spring connection, color: blue grey, contact surface: Tin
Connector for printed circuit board, nominal section: 6 mm², color: bluish gray, nominal current: 41 A, dimensioning voltage (III/2): 1000 V, contact surface: Tin, contact type: Female connection, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 12, family of articles: TSPC 5/.. -STCL, pitch: 7.62 mm, connection type: Push-in spring connection, conductor connection direction/printed circuit board: 0 °, Clamping hook:- without clamping hook, plug-in system: POWER COMBICON 5, Locking: Clip lock, fixing type: Click & Lock locking clamp, packaging type: packed in box
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB connector, nominal current: 41 A, rated voltage (III/2): 1000 V, number of positions: 6, pitch: 7.62 mm, connection method: Push-in spring connection, color: blue grey, contact surface: Tin
Key Commercial Data
| Orderkey | 1839033 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626069593 |
| Custom tariff number | 85366990 |
Dimensions
| Length [ l ] | 41.45 mm |
|---|---|
| Width [ w ] | 53.72 mm |
| Height [ h ] | 35.05 mm |
| Pitch | 7.62 mm |
| Dimension a | 38.1 mm |
General
| Range of articles | TSPC 5/..-STCL |
|---|---|
| Number of positions | 6 |
| Connection method | Push-in spring connection |
| Rated voltage (III/3) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 41 A |
| Nominal cross section | 6 mm² |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 10 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 4 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 8 |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 1.5 mm² |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440309 |
|---|---|
| eCl@ss 9.0 | 27440309 |
ETIM
| ETIM 5.0 | EC002638 |
|---|---|
| ETIM 6.0 | EC002638 |
UNSPSC
| UNSPSC 13.2 | 39121409 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
