TR-ES-1T-MUL-10H 2909777 PHOENIX CONTACT Relay timer multifunction with 7 functions and a margin of time, ad..
TR-ES-1T-MUL-10H
2909777
PHOENIX_CONTACT
10

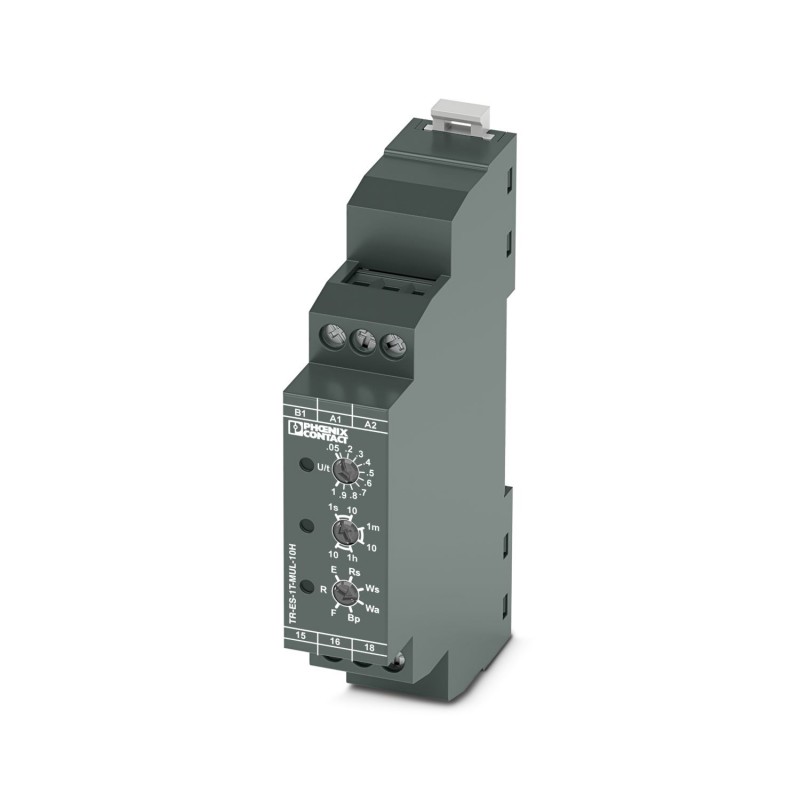

Relay timer multifunction with 7 functions and a margin of time, adjustable (50 ms - 10 h), voltage: 24-48 V DC/24-240 V AC, 1 change-over contact
Multifunctional timing relay with 7 functions and an adjustable time range (50 ms - 10 h), supply voltage: 24 V DC ... 48 V DC/24 V AC ... 240 V AC, 1 switch
Multifunction time relay with 7 functions and an adjustable time interval (50 ms \u2012 10 h), supply voltage: 24 V DC ... 48 V DC/24 V AC ... 240 V AC, 1 changeover contact
Relays > Timer relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Relay timer multifunction with 7 functions and a margin of time, adjustable (50 ms - 10 h), voltage: 24-48 V DC/24-240 V AC, 1 change-over contact
Data commercial
| Key order | Two million nine hundred nine thousand seven hundred seventy seven |
|---|---|
| Packing unit | 10 pcs |
| Key selling | CK4621 - |
| Minimum order quantity | 10 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million four hundred ninety one thousand six hundred ninety one |
| Unit weight (excluding packaging) | 50,560 g |
| Tariff number tariff | Eighty five million three hundred sixty four thousand one hundred ninety |
Measures
| Width | 17.5 mm |
|---|---|
| Height | 98 mm |
| Depth | 57,9 mm |
Environmental conditions
| Room temperature (service) | -25 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 70 °C |
| Humidity of air permissible (service) | 25 % ... 75 % |
| Resistance to interference | IEC 61812-1 |
Side of excitation
| Input voltage range | DC 24 V ... 48 V DC -10 % ... +10 % |
|---|---|
| 24 V AC ... 240 V AC -15 % ... +10 % | |
| Running temperature | < 0,05 %/°C |
| Function | E: With switch-on delay |
| Rs: Enabling the delay | |
| Ws: Output pulse (rising edge) and control contact | |
| Wa: Output pulse (falling edge) and control contact | |
| Bp: Output pulse cycle (the exit status is 0) | |
| F: Switch | |
| Wu: Output pulse (rising edge) and voltage regulation | |
| Time-adjustment range | 50 ms ... 10 h (6 ranges the end of time) |
| Recovery time | > 100 ms |
Side of contacts
| Type of contact | 1 change-over contact potential-free |
|---|---|
| Switching voltage maximum | 250 V AC |
| Breaking capacity (resistive load) maximum | 1250 VA (5 A / 250 V AC) |
| Output fuse | 5 A (fast) |
Overview
| Mechanical life | approx. 1x 10Sixswitching cycles |
|---|---|
| Position to the mounting | discretionary |
| Installation instructions | on lane standard NS 35 according to en 60715 |
| Standards/specifications | IEC 61812-1 |
| Color | dark grey |
| Humidity of air permissible (service) | 25 % ... 75 % |
| Nominal frequency | 48 Hz ... 63 Hz |
| Isolation voltage design | 300 V |
| Accordance | CE conformity |
Data connection
| Section of flexible conductor, min. | 0.25 mm2 |
|---|---|
| Section of flexible conductor max. | 2.5 mm2 |
| Core cross-section rigid min. | 0.25 mm2 |
| Section of conductor rigid max. | 2.5 mm2 |
| Section of conductor AWG min. | Twenty three |
| Section of conductor AWG max. | Fourteen |
| Length desaislar | 7 mm |
Control contact
| Name Connection | With potential, terminals A1-B1 |
|---|---|
| Length of impulse control | ≥ 25 ms (DC) |
| ≥ 50 ms (AC) |
Standards and specifications
| Electromagnetic compatibility | Conformity with the EMC directive |
|---|---|
| Emission of interference | IEC 61812-1 |
| Resistance to interference | IEC 61812-1 |
| Standards/specifications | IEC 61812-1 |
| Low voltage directive | Accordance with the directive for low voltage |
| Accordance | CE conformity |
| Feature Name | Feature Value |
|---|---|
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Suitable for front mounting (EF020288) | No |
| Time range (EF003384) | 0.05 s |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 98 mm |
| Depth (EF000049) | 57.9 mm |
