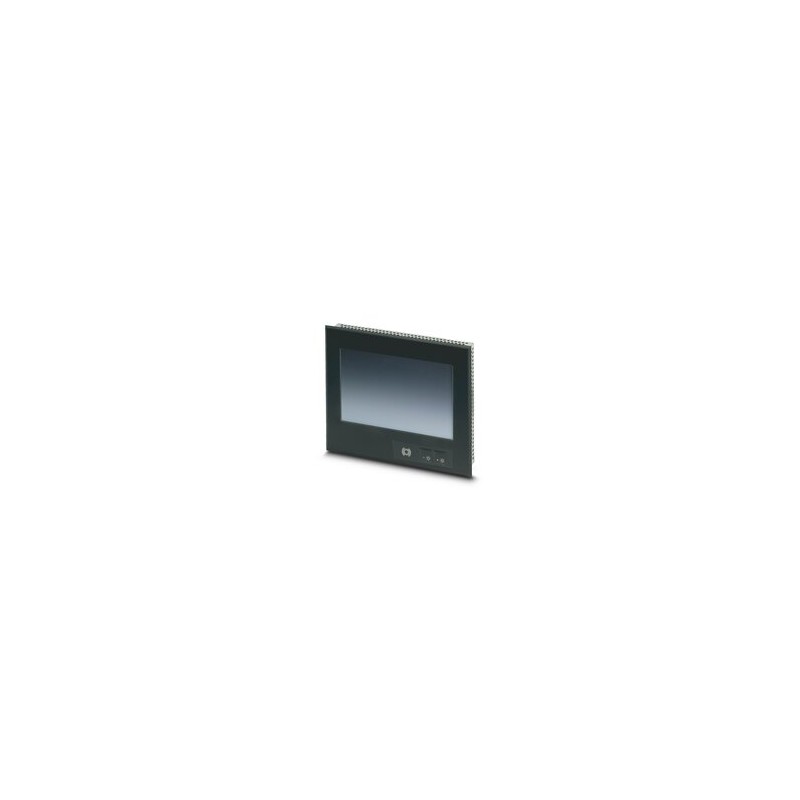

TPM70XIT-12/3203C3600 S00052 2401610 PHOENIX CONTACT Maritime-Touch panel with 17.8 cm/7" TFT-display (Resis..
TPM70XIT-12/3203C3600 S00052
2401610
PHOENIX_CONTACT
Maritime-Touch panel with 17.8 cm/7" TFT-display (Resistive industrial touch screen), 800 x 480 Pixel(s) (WVGA), 262144 colors, XScale® PXA320, 806 MHz, 2x USB host 1.1, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 6.0 and user software: Open platform. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Operator panel |
| Application | Maritime |
| Computer data | |
| Processor | Xscale®PXA320, 806 MHz |
| Operating system | Windows®CE 6.0 |
| RAM | 128 MB SDRAM |
| 1 MB SRAM | |
| Data storage system | NAND-Flash, 1 GB |
| Extras | Maritime with keys |
| Display | |
| Display type | 17.8 cm/7" TFT |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | Resistive industrial touch screen |
| Display lighting type | LED |
| Brightness | 350 cd/m², typical (adjustable) |
| MTBF | 40000 h |
| Color spectrum | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 65 ° |
| User software | Open platform |
| Interfaces | 2x USB host 1.1 |
| Optional interfaces | CF slot |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Bus system | without |
| User software | Open platform |
| Service life of battery | 5 years (typical) |
| Supply | |
| Power supply unit | 24 V DC ±20 % |
| Typical current consumption | 0.7 A |
| Real-time clock | |
| Realtime clock | Yes |
| Mounting type | Front mounting |
| Material front plate | Aluminum (black anodized) |
| Housing material | Steel sheet, zinc-plated |
| Ambient conditions | |
| Degree of protection | IP65 (front), IP20 (back) |
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Altitude | 3000 m |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Shock | 15g, according to IEC˽60068-2-27 |
| Vibration (operation) | 0.7g, in accordance with EN 60068-2-6 |
| External dimensions | |
| Width / Height / Depth | 203 mm / 165 mm / 5 mm (Dimensions of the front plate) |
| Installation dimensions | |
| Width / Height / Installation depth | 157 mm / 195 mm / 49 mm (Mounting cutout, depth with bus if bus system present in the device) |
