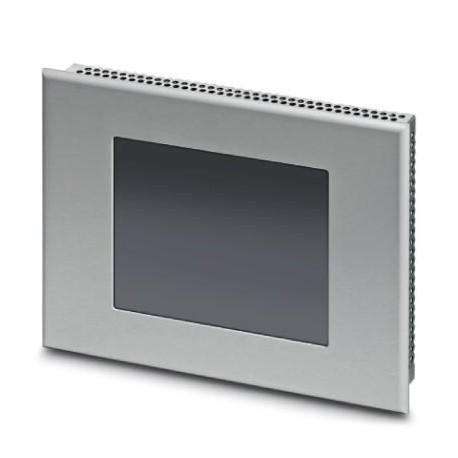

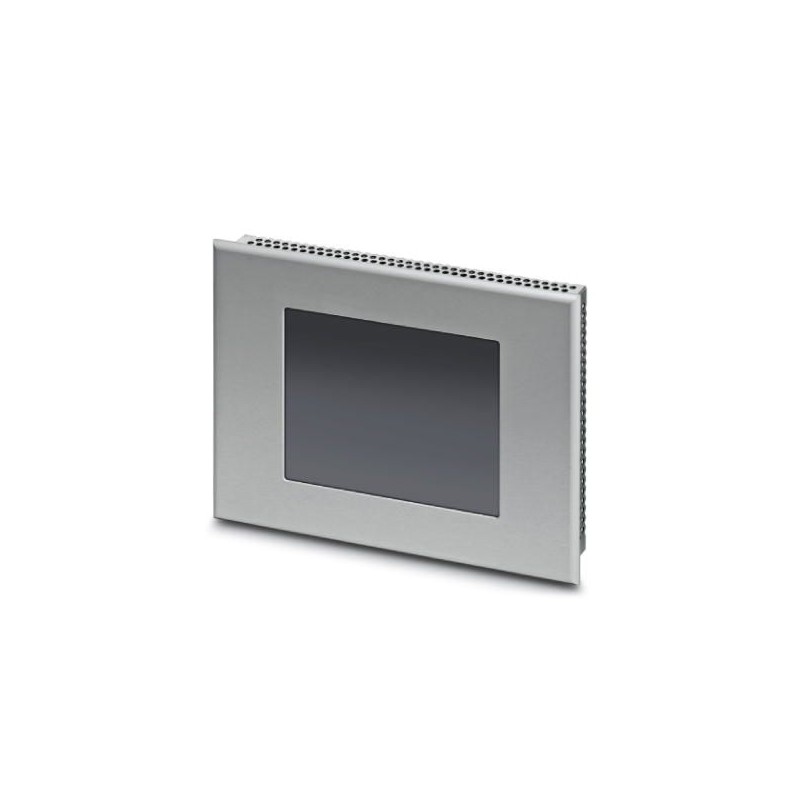

TPM21AT/702000 S00001 2401376 PHOENIX CONTACT Touch panel
TPM21AT/702000 S00001
2401376
PHOENIX_CONTACT
Touch panel
Control Systems (CST)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2401376 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626146331 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| External dimension, width | 203 mm |
|---|---|
| External dimension, height | 165 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 139 mm |
| Installation dimension, height | 195 mm |
| Installation dimension, depth | 54 mm |
Display
| Display | 14.5 cm/5.7" TFT active |
|---|---|
| Brightness | 400 cd/m², typical (adjustable) |
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Backlighting | CCFL |
| Display backlight MTBF | 50000 h |
| Touch technology | analog resistive (polyester) |
| Colors | 65536 colors |
| Reading angle left | 65 ° |
| Reading angle right | 65 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 40 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows® CE 5.0 |
| User software | TSvisRT |
| RAM | 512 KB SRAM |
| Mass storage | NOR-Flash, 32 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Maritime without keys |
|---|---|
| Optional operating keys | without |
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1000 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
