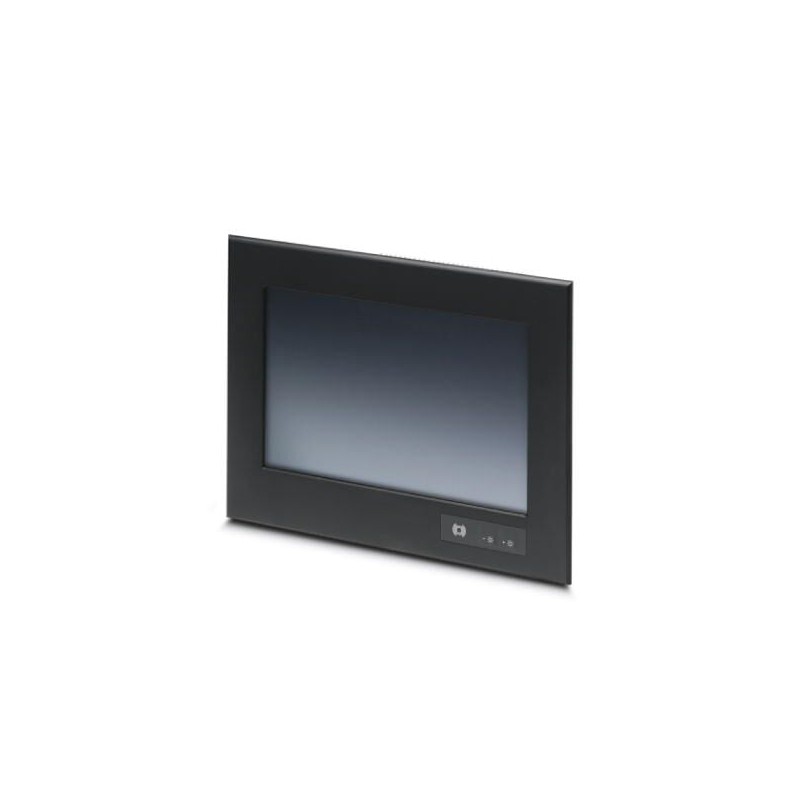

TPM121ZTM-12/800330904 S00087 2401409 PHOENIX CONTACT Maritime-Touch panel with 30.7 cm/12.1" TFT-display (a..
TPM121ZTM-12/800330904 S00087
2401409
PHOENIX_CONTACT
Maritime-Touch panel with 30.7 cm/12.1" TFT-display (analog resistive (polyester)), 1280 x 800 Pixel(s) (WXGA), 262144 colors, Intel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Maritime-Touch panel with 30.7 cm/12.1" TFT-display (analog resistive (polyester)), 1280 x 800 Pixel(s) (WXGA), 262144 colors, Intel®Atom™ E680T 1.6 GHz, 4x USB Host 2.0, 2x Ethernet (10/100/1000 Mbps), RJ45, Windows CE 6.0 and user software: Visu+. (bus system: without)
Key Commercial Data
| Orderkey | 2401409 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626146454 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 336 mm x 252 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| 82 mm (without serial interface) | |
| Installation dimensions: width, height, depth | 310 mm x 226 mm x 100 mm (Mounting cutout, depth with serial interface) |
Display
| Display | 30.7 cm/12.1" TFT |
|---|---|
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 320 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 262144 colors |
| Reading angle left | 88 ° |
| Reading angle right | 88 ° |
| Reading angle top | 88 ° |
| Reading angle bottom | 88 ° |
Computer data
| Processor | Intel®Atom™ E680T 1.6 GHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Visu+ |
| RAM | 2 GB DDR2 SDRAM |
| Mass storage | SATA DOM SSD (SLC), 8 GB |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Interfaces | 4x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Maritime without keys |
|---|---|
| Optional operating keys | without |
| Material front plate | Aluminum (black anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 2100 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 0.7g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Device supply
| Typical current consumption | 0.9 A |
|---|---|
| Power supply unit | 24 V DC ±20 % |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 0.7g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27330200 |
|---|---|
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 4.0 | EC001412 |
|---|---|
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 13.2 | 43211904 |
|---|
