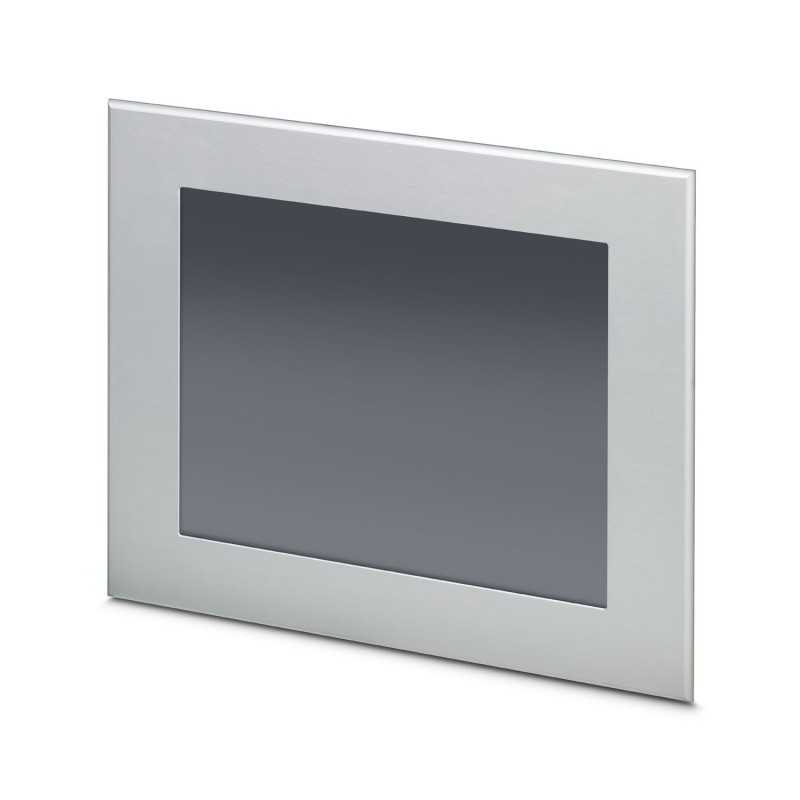

TPE121BGS/A00290029 S00131 2401661 PHOENIX CONTACT Rugged-Touch panel with 30.7 cm/12.1" TFT-display (Analog..
TPE121BGS/A00290029 S00131
2401661
PHOENIX_CONTACT
Rugged-Touch panel with 30.7 cm/12.1" TFT-display (Analog resistive (GFG)), 800 x 600 Pixel(s) (SVGA), 262144 colors, Intel
Rugged-Touch panel with 30.7 cm / 12.1"-TFT display (Analog resistive (GFG)), 800 x 600 pixel(s) (SVGA), 262144 colors, Intel® Atom™ E3815 1.46 GHz, 4x USB Host 2.0, 1x Ethernet (10/100/1000 Mbps), RJ45, Windows® Embedded Compact 7 and user software: Open platform. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Operator panel |
| Application | Rugged |
| Computer data | |
| Processor | Intel® Atom™ E3815 1.46 GHz |
| Operating system | Windows® Embedded Compact 7 |
| RAM | 2 GB DDR3 |
| Data storage system | Flash, 4 GB (integrated) |
| Slots | 1x SD |
| Extras | Integrated acoustic signal (buzzer) |
| Display | |
| Display type | 30.7 cm / 12.1"-TFT |
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Touch technology | Analog resistive (GFG) |
| Display lighting type | LED |
| Brightness | 360 cd/m² typical (adjustable) |
| MTBF | 50000 h |
| Color spectrum | 262144 colors |
| Reading angle left | 80.00 ° |
| Reading angle right | 80.00 ° |
| Reading angle top | 65.00 ° |
| Reading angle bottom | 75.00 ° |
| Interfaces | 4x USB Host 2.0 |
| Network | 1x Ethernet (10/100/1000 Mbps), RJ45 |
| Bus system | without |
| User software | Open platform |
| Service life of battery | 5 years (typical) |
| Supply | |
| Power supply unit | 24 V DC ±20 % |
| Max. current consumption | 1 A |
| Real-time clock | |
| Realtime clock | Yes |
| Mounting type | Bolt fixing |
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Ambient conditions | |
| Degree of protection | IP67 (front), IP20 (back) |
| NEMA 4X | |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Altitude | 4000 m |
| Permissible humidity (operation) | 5 % ... 95 % (Front) |
| 20 % ... 85 % (On the rear) | |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| External dimensions | |
| Width / Height / Depth | 359 mm / 280 mm / 5 mm (Dimensions of the front plate) |
| Installation dimensions | |
| Width / Height / Installation depth | 323 mm / 244 mm / 87 mm (Mounting cutout, depth with bus if bus system present in the device) |
