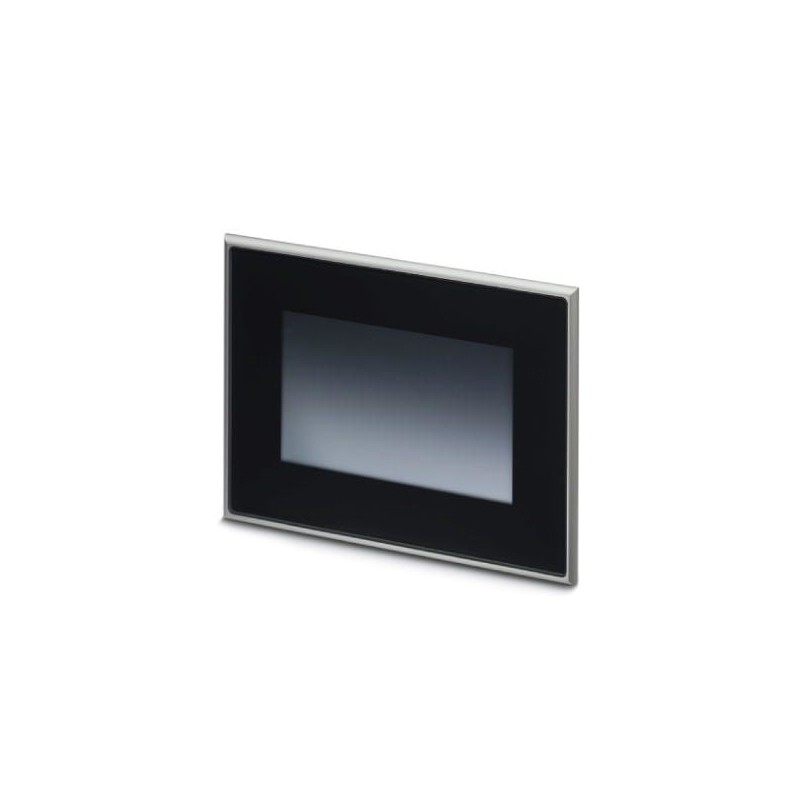

TPE070ACW/107060020 S00125 2401564 PHOENIX CONTACT Touch panel
TPE070ACW/107060020 S00125
2401564
PHOENIX_CONTACT
Touch panel
Control Systems (CST)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2401564 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626309385 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| External dimension, width | 234 mm |
|---|---|
| External dimension, height | 174 mm |
| External dimension, depth | 6 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 200 mm |
| Installation dimension, height | 140 mm |
| Installation dimension, depth | 54 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display
| Display | 17.8 cm/7" TFT |
|---|---|
| Brightness | 350 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Projective-capacitive, single-touch control |
| Colors | 16.7 million colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 60 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | Arm9™, 184 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 128 MB SDRAM |
| 512 KB NV | |
| Mass storage | NOR-Flash, 64 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Integrated acoustic signal (buzzer) |
|---|---|
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Bolt fixing |
| Weight | 1100 g |
Ambient conditions
| Degree of protection | IP67 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
