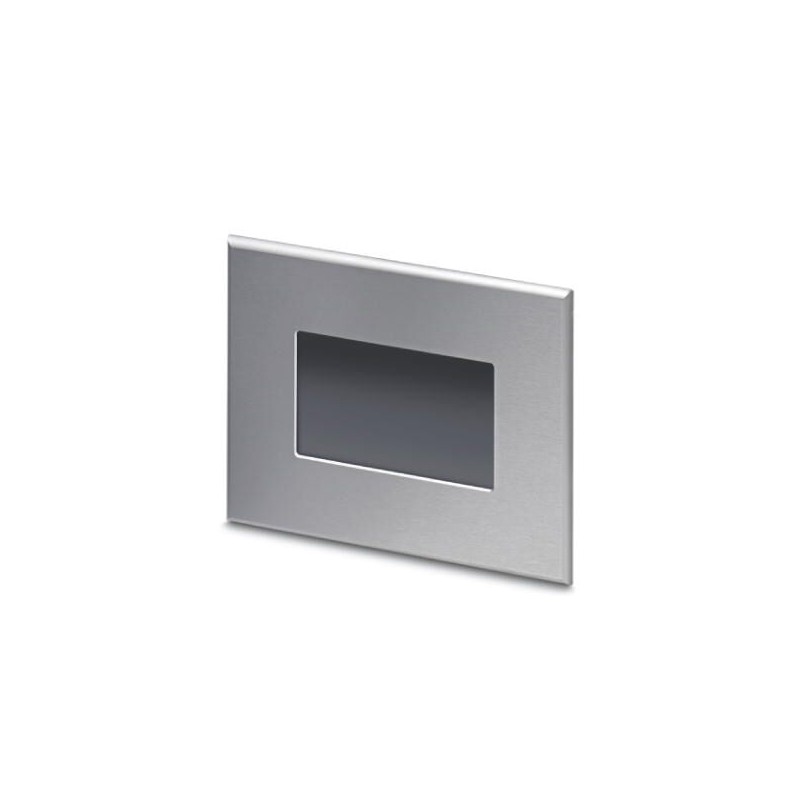

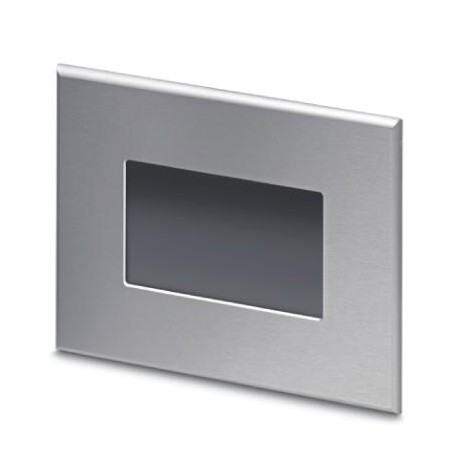

TPE043SGB/200810021 S00071 2401608 PHOENIX CONTACT Rugged-Touch panel with 10,92 cm / 4,3"-TFT-display (Anal..
TPE043SGB/200810021 S00071
2401608
PHOENIX_CONTACT
Rugged-Touch panel with 10,92 cm / 4,3"-TFT-display (Analog resistive (GFG)), 480 x 272 Pixel(s) (WQVGA), 262144 colors, Arm
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Rugged-Touch panel with 10,92 cm / 4,3"-TFT-display (Analog resistive (GFG)), 480 x 272 Pixel(s) (WQVGA), 262144 colors, Arm®Cortex®-A8, 1000 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows®Embedded Compact 7 and user software: TSvisIT. (bus system: DualCAN)
Key Commercial Data
| Orderkey | 2401608 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626284187 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 171 mm x 131 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 136 mm x 96 mm x 68 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 10,92 cm / 4,3"-TFT |
|---|---|
| Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
| Touch technology | Analog resistive (GFG) |
| Brightness | 385 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Colors | 262144 colors |
| Reading angle left | 75 ° |
| Reading angle right | 75 ° |
| Reading angle top | 63 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | TSvisIT |
| RAM | 1 MB SRAM |
| 512 MB LPDDR SDRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | DualCAN |
| Optional interfaces | none |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Bolt fixing |
| Weight | 600 g |
Ambient conditions
| Degree of protection | IP67 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Device supply
| Power supply unit | 24 V DC ±20 % |
|---|
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330203 |
|---|---|
| eCl@ss 4.1 | 27330203 |
| eCl@ss 5.0 | 27330202 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 2.0 | EC001426 |
|---|---|
| ETIM 3.0 | EC001426 |
| ETIM 4.0 | EC001412 |
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 6.01 | 43172403 |
|---|---|
| UNSPSC 7.0901 | 43211903 |
| UNSPSC 11 | 43172403 |
| UNSPSC 12.01 | 43211903 |
| UNSPSC 13.2 | 43211904 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
