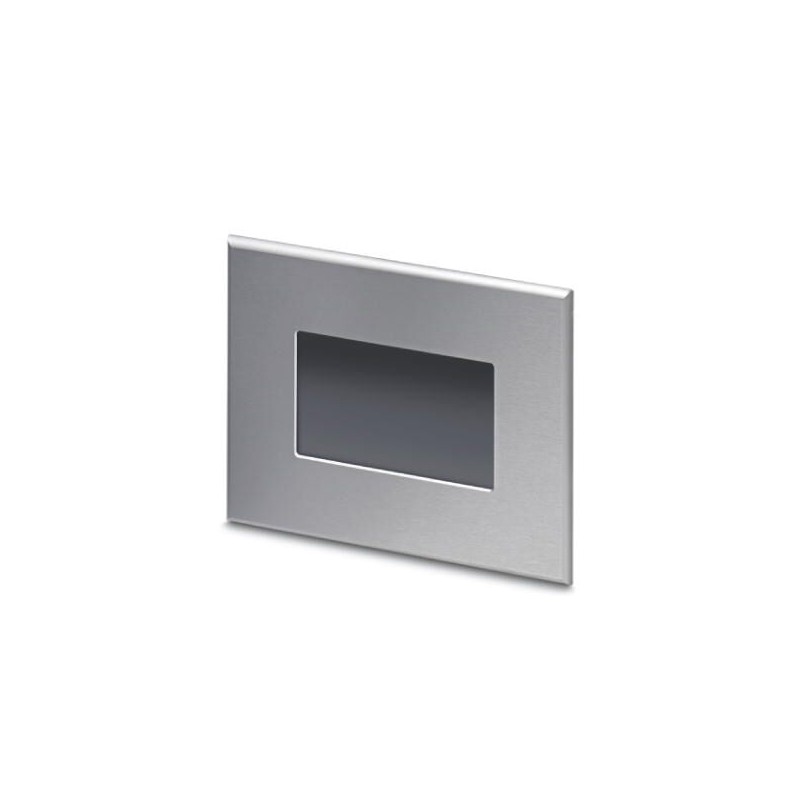

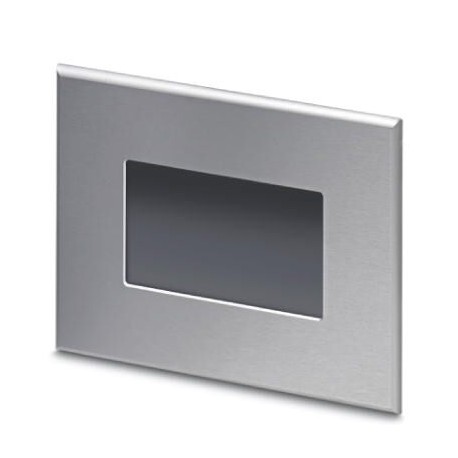

TPE043SGB/200710021 S00071 2401607 PHOENIX CONTACT Rugged-Touch panel with 10,92 cm / 4,3"-TFT-display (Anal..
TPE043SGB/200710021 S00071
2401607
PHOENIX_CONTACT
Rugged-Touch panel with 10,92 cm / 4,3"-TFT-display (Analog resistive (GFG)), 480 x 272 Pixel(s) (WQVGA), 262144 colors, Arm
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred one thousand six hundred seven |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCACE - |
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred eighty four thousand one hundred seventy |
| Unit weight (excluding packaging) | 600,000 g |
| Tariff number tariff | Eighty four million seven hundred fourteen thousand one hundred |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Dimensions
| External dimension Width, Height, Depth | 171 mm x 131 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 136 mm x 96 mm x 68 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
Screen
| Display | 10,92 cm / 4,3"TFT- |
|---|---|
| Resolution of the screen | 480 x 272 Pixel(s) (WQVGA) |
| Touch Technology | analog-resistive (GFG) |
| Brightness | 385 cd/m2 typically (adjustable) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Colors | 262144 colors |
| Untoangle of reading left | 75 ° |
| Untoangle reading right | 75 ° |
| Untoangle to read up | 63 ° |
| Untoangle reading below | 75 ° |
Data computer
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| Software user | TSvisIT |
| Main memory | 1 MB SRAM |
| 512 MB LPDDR SDRAM | |
| Data memory | NAND-Flash, 1 GB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| 1x COM (RS-232) | |
| 1x COM (RS-422/485) | |
| System bus | without |
| Optional Interfaces | none |
| Ports | 1x SD |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Fixing by bolts |
| Weight | 600 g |
Environmental conditions
| Index of protection | IP67 (front side), IP20 (next post.) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | -20 °C ... 70 °C |
| Ambient temperature (storage / transport) | -30 °C ... 80 °C |
| Humidity of air permissible (service) | 20 % ... 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million three hundred thirty thousand two hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.0 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 6.0 | Twenty seven million two hundred forty two thousand three hundred |
| eCl@ss 7.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 8.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 9.0 | Twenty seven million three hundred thirty thousand two hundred one |
ETIM
| ETIM 2.0 | EC001426 |
|---|---|
| ETIM 3.0 | EC001426 |
| ETIM 4.0 | EC001412 |
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 6.01 | Forty three million one hundred seventy two thousand four hundred three |
|---|---|
| UNSPSC 7.0901 | Forty three million two hundred eleven thousand nine hundred three |
| UNSPSC 11 | Forty three million one hundred seventy two thousand four hundred three |
| UNSPSC 12.01 | Forty three million two hundred eleven thousand nine hundred three |
| UNSPSC 13.2 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 18.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 19.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 20.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 21.0 | Forty three million two hundred eleven thousand nine hundred four |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
