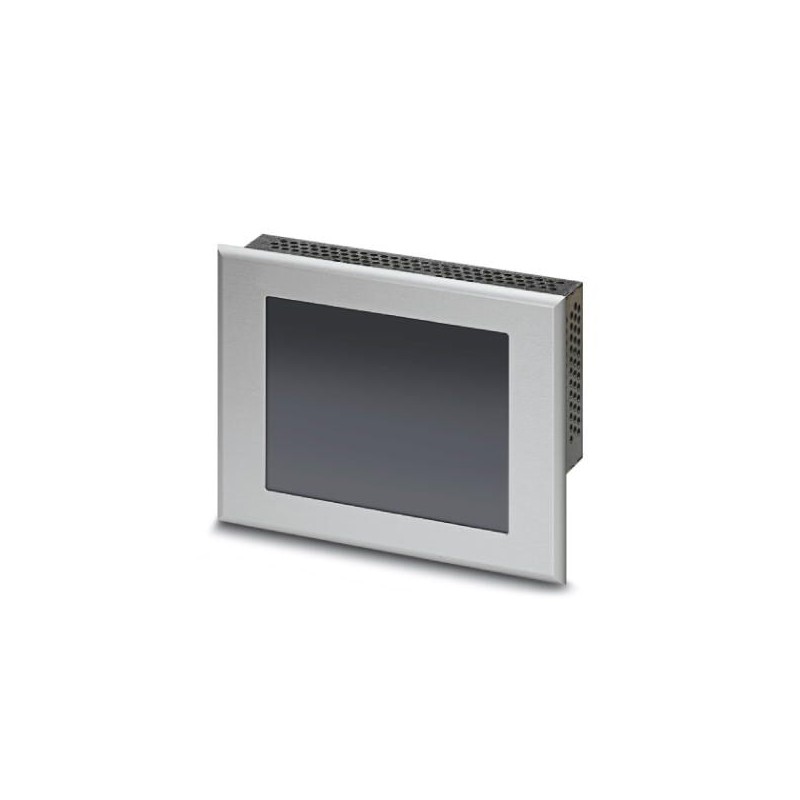

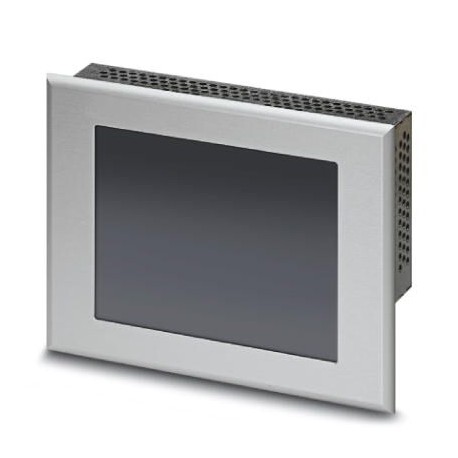

TP57AM/702000 S00045 2401082 PHOENIX CONTACT Touch panel with 14.5 cm/5.7" FSTN-display (analog resistive (p..
TP57AM/702000 S00045
2401082
PHOENIX_CONTACT
Touch panel with 14.5 cm/5.7" FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 256-step grayscale, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 6.0 and user software: Open platform. (bus system: without)
Touch panel with 14.5 cm/5.7" FSTN-display (analog resistive (polyester)), 320 x 240 pixel(s) (QVGA), 256-step grayscale, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred one thousand eighty two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCABA - |
| EAN | Four trillion fifty five billion six hundred twenty six million ninety six thousand four hundred seventy six |
| Unit weight (excluding packaging) | 690,000 g |
| Tariff number tariff | Eighty four million seven hundred fourteen thousand one hundred |
| Country of origin | DE (Germany) |
Dimensions
| External dimension Width, Height, Depth | 168 mm x 126 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 160 mm x 118 mm x 54 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
Screen
| Display | 14.5 cm / 5.7 inch, FSTN |
|---|---|
| Resolution of the screen | 320 x 240 Pixel(s) (QVGA) |
| Touch Technology | analog-resistive (polyester) |
| Brightness | 400 cd/m2 typical (adjustable) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Colors | 256 levels of gray |
| Untoangle of reading left | 75 ° |
| Untoangle reading right | 75 ° |
| Untoangle to read up | 60 ° |
| Untoangle reading below | 75 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| Software user | Open platform |
| Main memory | 64 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 32 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | without |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 690 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C ... 50 °C |
| Ambient temperature (storage / transport) | -25 °C ... 70 °C |
| Humidity of air permissible (service) | 20 % ... 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million three hundred thirty thousand two hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.0 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 6.0 | Twenty seven million two hundred forty two thousand three hundred |
| eCl@ss 7.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 8.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 9.0 | Twenty seven million three hundred thirty thousand two hundred one |
UNSPSC
| UNSPSC 13.2 | Forty three million two hundred eleven thousand nine hundred four |
|---|---|
| UNSPSC 19.0 | Forty three million two hundred eleven thousand nine hundred four |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
