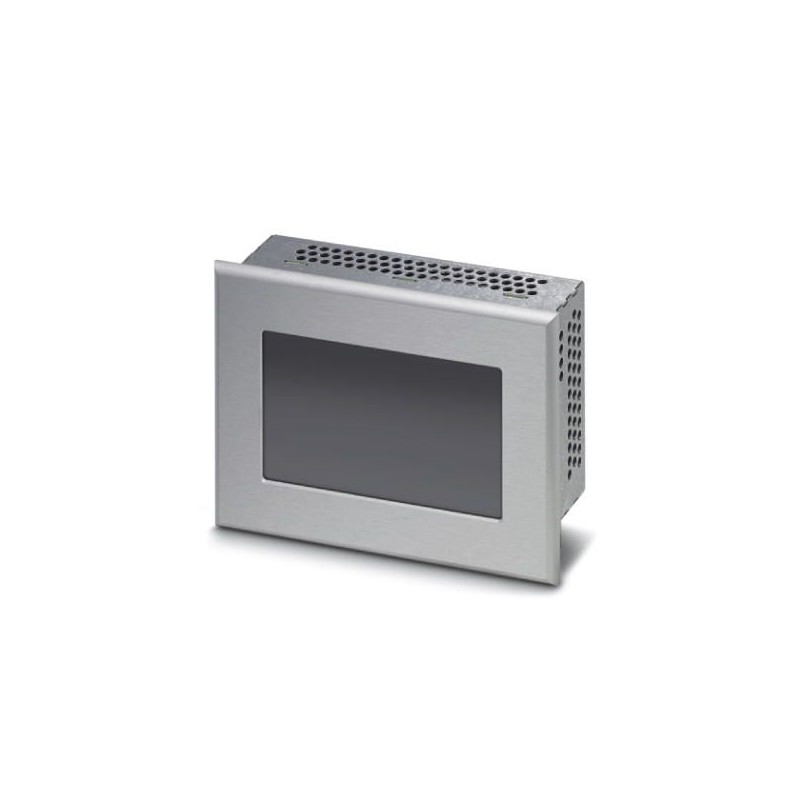

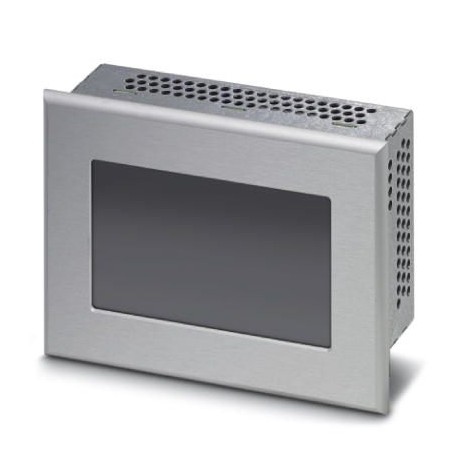

TP43AT/703000 S00001 2401066 PHOENIX CONTACT Touch Panel with 10.92 cm / 4.3 inch-TFT-Screen (analog resisti..
TP43AT/703000 S00001
2401066
PHOENIX_CONTACT
Touch Panel with 10.92 cm / 4.3 inch-TFT-Screen (analog resistive (polyester)), 480 x 272 Pixel, 65536 colors, ARM9™, 200 MHz, 2x USB Host 2.0 1x Ethernet (10/100 Mbit/s), RJ45 Windows CE 5.0, and user Software: TSvisRT. (System bus: no)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred one thousand sixty six |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCABB - |
| EAN | Four trillion fifty five billion six hundred twenty six million ninety six thousand six hundred twenty nine |
| Unit weight (excluding packaging) | 590,000 g |
| Tariff number tariff | Eighty four million seven hundred fourteen thousand one hundred |
| Country of origin | (Germany) |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Dimensions
| External dimension Width | 140 mm |
|---|---|
| Outside dimension Height | 100 mm |
| Outside dimension Depth | 5 mm |
| Indication of the external dimension | Dimensions of the front plate |
| Measure the mounting Width | 132 mm |
| Measure mounting Height | 92 mm |
| Measure mounting Depth | 54 mm |
| Indication about the extent of assembly | Section mounting, depth with the bus in case there is a bus system in the device |
Screen
| Display | 10,92 cm / 4,3"TFT- |
|---|---|
| Brightness | 385 cd/m2 typically (adjustable) |
| Resolution of the screen | 480 x 272 Pixel(s) (WQVGA) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Touch Technology | analog-resistive (polyester) |
| Colors | 65536 colors |
| Untoangle of reading left | 75 ° |
| Untoangle reading right | 75 ° |
| Untoangle to read up | 63 ° |
| Untoangle reading below | 75 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | TSvisRT |
| Main memory | 128 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 64 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | without |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 590 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C ... 50 °C |
| Ambient temperature (storage / transport) | -25 °C ... 70 °C |
| Humidity of air permissible (service) | 20 % ... 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 5.1Twenty seven million three hundred thirty thousand two hundredeCl@ss 6.0Twenty seven million two hundred forty two thousand three hundredeCl@ss 7.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 8.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 9.0Twenty seven million three hundred thirty thousand two hundred one
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
