TP121ZKM/800230024 S00075 2400914 PHOENIX CONTACT Panel PC with 30.7 cm/12.1" TFT-display (Projective-capaci..
TP121ZKM/800230024 S00075
2400914
PHOENIX_CONTACT

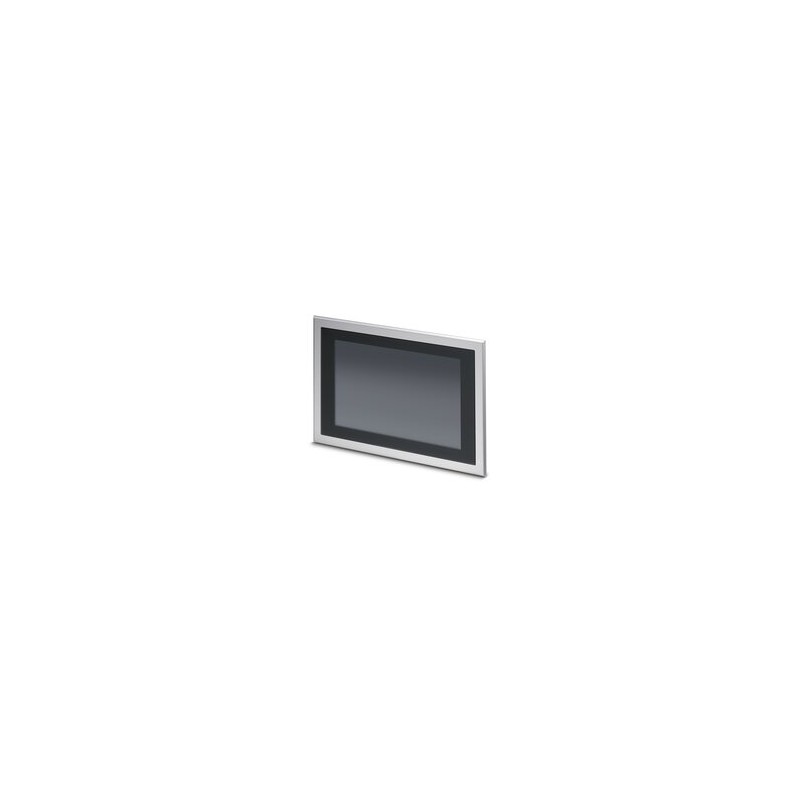

Panel PC with 30.7 cm/12.1" TFT-display (Projective-capacitive (PCAP)), 1280 x 800 Pixel(s) (WXGA), 262144 colors, Intel
Panel PC with 30.7 cm/12.1" TFT-display (projective-capacitive (PCAP)), 1280 x 800 pixel(s) (WXGA), 262144 colors, Intel® Atom™ E680T 1.6 GHz, 4x USB Host 2.0, 1x Ethernet (10/100/1000 Mbps), RJ45, Windows® Embedded Standard 7 and user software: Open platform. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Panel PC |
| Computer data | |
| Processor | Intel®Atom™ E680T 1.6 GHz |
| Operating system | Windows®Embedded Standard 7 |
| RAM | 2 GB DDR2 SDRAM |
| Data storage system | SATA DOM SSD (SLC), 8 GB |
| Slots | 1x SD |
| Display | |
| Display type | 30.7 cm/12.1" TFT |
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Touch technology | projective-capacitive (PCAP) |
| Display lighting type | LED |
| Brightness | 640 cd/m² typical (adjustable) |
| MTBF | 100000 h |
| Color spectrum | 262144 colors |
| Reading angle left | 80 ° |
| Reading angle right | 80 ° |
| Reading angle top | 60 ° |
| Reading angle bottom | 80 ° |
| User software | Open platform |
| Service life of battery | 5 years (typical) |
| Supply | |
| Typical current consumption | 1.2 A |
| Real-time clock | |
| Realtime clock | Yes |
| Supply | |
| Power supply unit | 24 V DC ±20 % |
| Interfaces | 4x USB Host 2.0 |
| Network | 1x Ethernet (10/100/1000 Mbps), RJ45 |
| Bus system | without |
| External dimensions | |
| Width / Height / Depth | 358 mm / 244 mm / 6 mm (Dimensions of the front plate) |
| Installation dimensions | |
| Width / Height / Installation depth | 324 mm / 210 mm / 76 mm |
| Ambient conditions | |
| Degree of protection | IP65 (front), IP20 (back) |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Altitude | 3000 m |
| Permissible humidity (operation) | 5 % ... 95 % (Front) |
| 20 % ... 85 % (On the rear) | |
| Shock | 15g, according to IEC˽60068-2-27 |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
