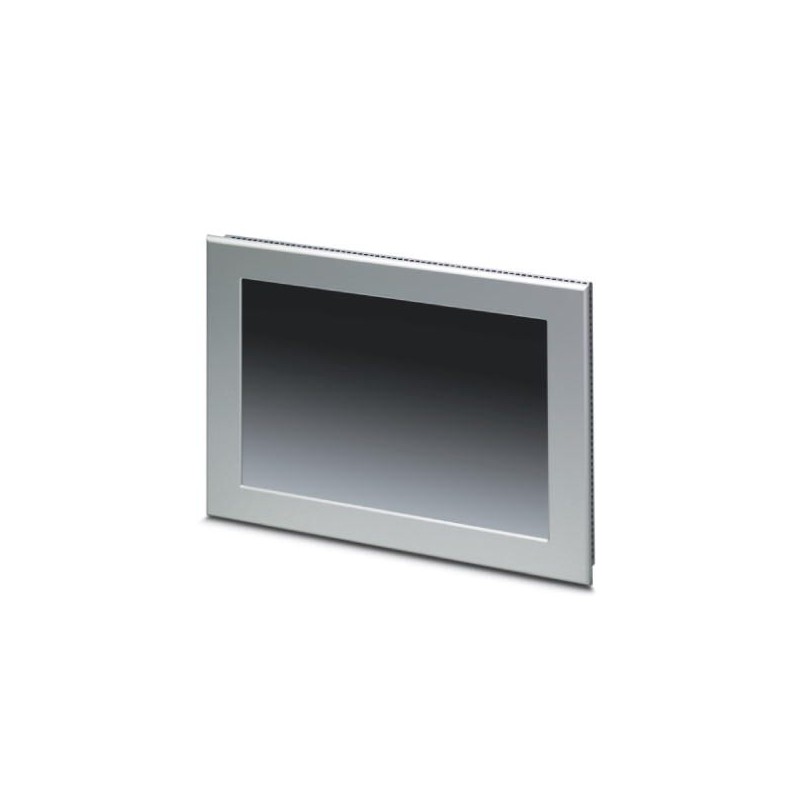

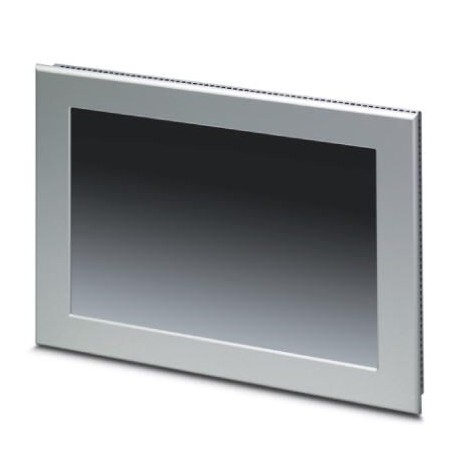

TP121STM/100110001 S00071 1094450 PHOENIX CONTACT Touch panel with 30.7 cm/12.1" TFT-display (Resistive indu..
TP121STM/100110001 S00071
1094450
PHOENIX_CONTACT
Touch panel with 30.7 cm/12.1" TFT-display (Resistive industrial touch screen), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm
Touch panel with 30.7 cm / 12.1"-TFT-screen (Rugged industrial touch screen), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: TSvisIT. (Bus system: SIN)
PLC's > Graphic panel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 330 mm x 225 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 322 mm x 217 mm x 48 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 30.7 cm/12.1" TFT |
|---|---|
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Touch technology | Resistive industrial touch screen |
| Brightness | 320 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 65536 colors |
| Reading angle left | 88 ° |
| Reading angle right | 88 ° |
| Reading angle top | 88 ° |
| Reading angle bottom | 88 ° |
Computer data
| Processor | Arm®Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | TSvisIT |
| RAM | 512 MB LPDDR SDRAM |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| Bus system | without |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1700 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330203 |
|---|---|
| eCl@ss 4.1 | 27330203 |
| eCl@ss 5.0 | 27330202 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 2.0 | EC001426 |
|---|---|
| ETIM 3.0 | EC001426 |
| ETIM 4.0 | EC001412 |
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
